  Direct answer: a standard 40HQ container can load up to 14 quick-assembly flat-pack container houses shipped in knock-down form, or 10 folding container houses with 50 mm wall panels (8 units with 75 mm panels). The double-wing expandable container house ships in its folded state at standard 20 ft dimensions (5900 × 2200 × 2480 mm). Loading density is the biggest single lever on per-unit shipping cost for overseas camp projects — and it is decided by the product's transport design, not by the freight forwarder. Wanbang Holding Group manufactures all three transport formats and has delivered modular buildings to more than 50 countries. This guide explains how each format packs into a 40HQ container, with the real loading figures from Wanbang's product specifications. 1. Quick-Assembly Flat-Pack: 14 Sets per 40HQ The quick-assembly flat-pack container house is designed so that all parts can be shipped in knock-down form — columns, beams, wall panels, and floor panels packed flat and separately. Columns connect to the top and bottom beams with bolts on site. This knock-down design greatly reduces shipping volume, which is what allows one 40HQ container to load up to 14 sets. Specification Quick-Assembly Flat-Pack Container House Standard size (L×W×H) 6055 × 2990 × 2896 mm Frame High-strength galvanized steel Wall panels Color steel rock wool sandwich panels Floor Cement fiber board with PVC flooring Connection Bolt-connected columns to top / bottom beams Transport form All parts shipped knock-down (flat-packed) Loading quantity Up to 14 sets per 40HQ container For a 100-person construction or mining camp, that density means the entire dormitory and office stock can move in a handful of containers instead of dozens — often the difference between a viable project budget and an overblown one. 2. Folding Container House: 10 Units per 40HQ, 15-Minute Setup The folding container house compresses to about one-sixth of its original volume. Folded flat (5900 × 2500 × 400 mm), it stacks inside a 40HQ container; on site it unfolds through hinges, locks, and dedicated connectors. Item Folding Container House Expanded size (L×W×H) 5900 × 2500 × 2470 mm Folded size (L×W×H) 5900 × 2500 × 400 mm Volume reduction Compressed to about 1/6 of original size Loading quantity 10 units per 40HQ (50 mm wall panels) / 8 units (75 mm panels) Setup Only 4 steps, about 15 minutes to build one unit The trade-off is transparent: thicker 75 mm wall panels improve insulation and rigidity, and they reduce the load from 10 to 8 units per container. Projects in hot climates or high-wind regions often accept that cost; short-term rental fleets usually maximize density at 50 mm. 3. Double-Wing Expandable: Ships Folded at 20 ft Size The double-wing expandable container house takes a different approach: it travels as a standard 20 ft unit in its folded state (5900 × 2200 × 2480 mm) and unfolds on site to 5900 × 6300 × 2480 mm — approximately 36 m² of floor area, layoutable as two bedrooms, one kitchen, one living room, and one bathroom. Because it ships as an integrated folded box rather than loose panels, it suits buyers who prioritize on-site speed and a home-style interior over maximum container density. Which Format Should You Ship? Format Units per 40HQ Best for Quick-assembly flat-pack Up to 14 sets (knock-down) Camps needing many standardized offices, dorms, welfare rooms Folding container 10 units (50 mm) / 8 units (75 mm) Rental fleets and projects needing the fastest repeat deployment Double-wing expandable Ships folded at 20 ft size Living quarters needing larger, home-style units (≈36 m²) FAQ How many flat pack containers fit in a 40ft container? Up to 14 sets. The quick-assembly flat-pack container house ships with all parts in knock-down form, which greatly reduces shipping volume and cost. How many folding container houses fit in a 40HQ? 10 units with 50 mm wall panels, or 8 units with 75 mm wall panels. The folding design compresses each unit to about one-sixth of its original volume. How long does it take to install a folding container house? One unit is assembled in only 4 steps, taking about 15 minutes, using hinges, locks, and dedicated connectors — no heavy equipment required. Why does knock-down shipping reduce container house shipping cost? Because loose-packed panels and frames fill a container far more efficiently than pre-assembled boxes. More units per container means lower freight cost per unit — up to 14 flat-pack sets share the freight of a single 40HQ container. Planning an overseas camp and want a loading plan for your route? Contact Wanbang for a container loading calculation.Contact: Jade · Tel: +86 13312807790 · WhatsApp: +966 50 2737 116 · Email: Jade.li@gdwbhouse.com For the full import sequence and what to confirm at each step, see our guide: https://www.gdwbprefabhouse.com/how-to-import-container-houses-from-china-from-inquiry-to-on-site-installation

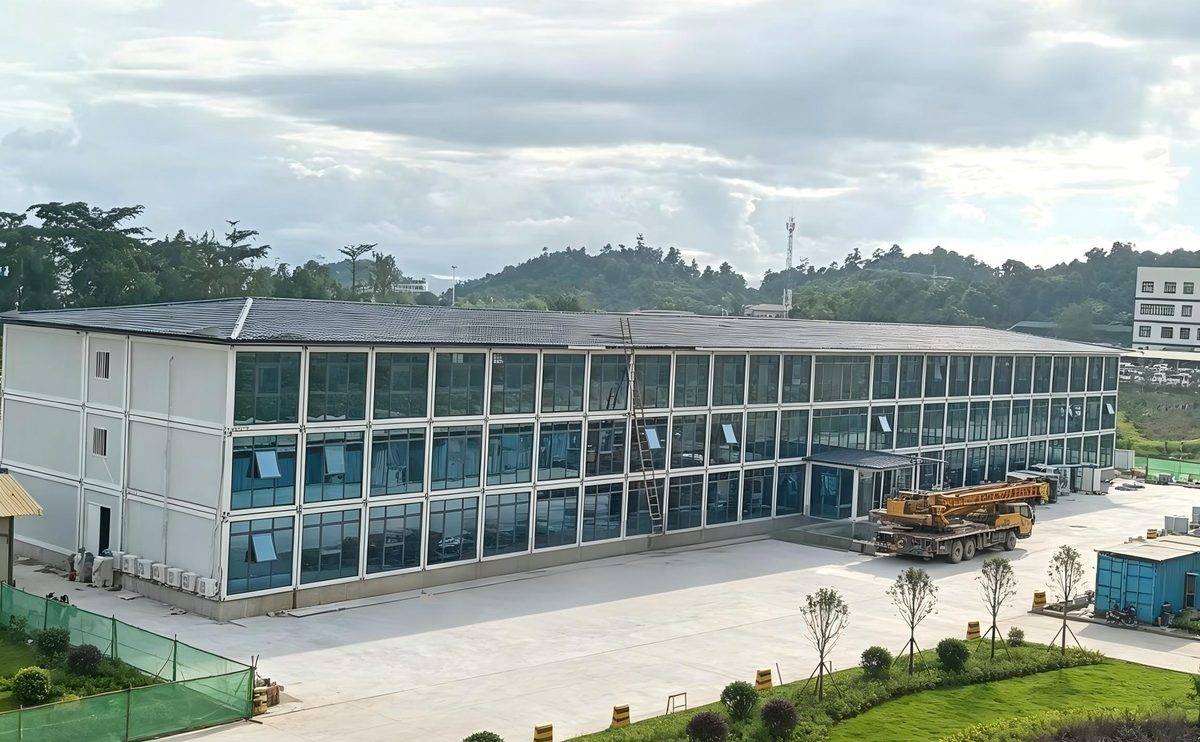

Direct answer: for hot, humid, typhoon-exposed or remote project regions, buyers should require five things from a container house: (1) rock-wool sandwich wall panels for thermal insulation, fire resistance and moisture resistance; (2) a high-strength galvanized steel frame; (3) structural ratings — typhoon resistance up to Grade 10 and seismic intensity Grade 8; (4) no-welding, no-crane installation; and (5) knock-down shipping density of up to 14 flat-pack sets per 40HQ container. These are not abstract checklist items — they are the exact specifications behind Wanbang camps delivered in Indonesia, the Philippines, Chile, Nigeria and Iraq. Wanbang Holding Group has delivered modular buildings to more than 50 countries across Africa, Oceania, South America, Southeast Asia, the Middle East and Central Asia. The requirements below are drawn from those project environments and from the verified specifications of the product line. 1. Extreme Heat: Insulation Is the First Spec to Check In Middle East summer conditions — the environment behind Wanbang's Iraq VAN project — a thin metal box becomes an oven unless the wall system is right. The spec that matters: color steel rock wool sandwich panels, which Wanbang's product documentation describes as offering excellent thermal insulation, fire resistance and moisture resistance. The floor matters too: cement fiber board with PVC finish, rated for strong load-bearing capacity, fire resistance and slip resistance. For buyers tendering in hot climates, insulation and fire performance should be written into the requirement as materials, not promises: rock-wool core (non-combustible, Class A fire rating on the flat-pack line), not thin EPS-style foam. 2. Typhoons and Humidity: The Southeast Asia Standard Indonesia and the Philippines combine cyclone-season winds, coastal humidity and remote island logistics — exactly the conditions of two flagship Wanbang projects: the Indonesia Tsingshan Holding Group nickel mining industrial park (an integrated complex of staff accommodation, administrative offices and full-range living amenities, delivered at massive volume) and the Philippines Zamboanga nickel mining camp. What buyers in typhoon-prone, humid regions should specify: Typhoon resistance up to Grade 10 (verified rating of the flat-pack line). Moisture resistance in the wall system — rock wool panels do not feed mold the way organic materials can. High-strength galvanized steel frame — the zinc coating is the corrosion barrier for coastal and humid sites. 3. Remote and Special Geography: South America and the Andes Wanbang's Chile G15 power transmission project was built under what the company's project documentation explicitly calls "special geographic conditions" — and South America's project map (Suriname, Bolivia, Chile, Peru, Venezuela) is largely remote, high-altitude or jungle terrain. Two specs decide success here. First, logistics density: quick-assembly flat-pack units ship in knock-down form — up to 14 sets per 40HQ container — which cuts the number of containers that must reach a remote site. Second, installation without heavy equipment: flat-pack units connect with bolts, requiring no welding and no crane — around 4 workers and about 3 hours per unit; folding units unfold in 4 steps in roughly 15 minutes. For buyers in earthquake-prone regions, the flat-pack line's Grade 8 seismic intensity rating is the relevant structural spec to require. 4. Large Industrial Camps: The Africa Playbook Wanbang's Nigeria Hengxing Steel Plant project shows the pattern for African industrial camps: standardized units configured as dormitories, offices and welfare rooms, deployed at camp scale. The company has delivered across nine African countries — Nigeria, Kenya, Algeria, the Democratic Republic of the Congo, Gabon, Guinea, Ghana, South Africa and Madagascar — where mining and industrial projects share the same core requirements: fast deployment, durable materials, and freight-efficient shipping. Regional Requirements Checklist Your region's challenge Spec to require (verified) Extreme heat (Middle East, desert) Rock wool sandwich panels — thermal insulation, Class A fire rating; cement fiber + PVC floor Typhoons / cyclonic wind Typhoon resistance Grade 10 Coastal humidity / corrosion High-strength galvanized steel frame; moisture-resistant wall panels Earthquake-prone zones Seismic intensity Grade 8 Remote sites, scarce equipment No welding, no crane: flat-pack ≈ 4 workers / 3 hours; folding unit 4 steps / ≈ 15 minutes Long ocean freight legs Knock-down shipping: up to 14 flat-pack sets per 40HQ; folding units 10 (50 mm walls) / 8 (75 mm) Long service expectations Service life 10–15 years (flat-pack line) FAQ Are container houses good for hot climates? Yes, when the wall system is specified correctly. Wanbang's color steel rock wool sandwich panels provide excellent thermal insulation together with fire and moisture resistance, and the floor system (cement fiber board with PVC) adds load-bearing capacity, fire resistance and slip resistance. Can container houses withstand typhoons? The flat-pack container house line carries a verified typhoon resistance rating of Grade 10, with a high-strength galvanized steel frame and bolt-connected structure. Can container houses be installed without a crane or welding? Yes. Quick-assembly flat-pack units use bolt connections only — no welding, no crane — with around 4 workers completing one unit in about 3 hours. Folding container houses unfold in 4 steps in roughly 15 minutes. How many container houses can be shipped to a remote site in one container? Up to 14 quick-assembly flat-pack sets per 40HQ container in knock-down form; folding units load 10 per 40HQ with 50 mm wall panels or 8 with 75 mm panels. Tell Wanbang your project region, climate and camp size — get a specification and container loading plan matched to it. Contact Wanbang.Contact: Jade · Tel: +86 13312807790 · WhatsApp: +966 50 2737 116 · Email: Jade.li@gdwbhouse.com

Direct answer: A folding container house is a factory-built modular unit that collapses to 5900 × 2500 × 400 mm — compressing to roughly one-sixth of its expanded volume — so that 10 units with 50 mm wall panels (or 8 units with 75 mm panels) fit inside one 40HQ shipping container. On site, a unit unfolds in about 15 minutes in four steps, using hinge and latch connections instead of on-site welding. It is the fastest-to-ship option in Wanbang's modular range for camps that need many bedrooms delivered in few containers. Wanbang Holding Group manufactures folding, flat-pack and double-wing expandable container houses in Guangdong, China, and has delivered modular buildings to more than 50 countries across Africa, South America, Southeast Asia, the Middle East and Oceania. This guide explains how the fold-out design works, how many units fit per container, and when a folding unit is the right choice compared with a flat-pack one. 1. How the Fold-Out Design Works A folding container house ships with its roof, floor and folded wall panels pre-assembled into one flat pack. The walls are attached to the base frame through factory-installed hinges and lock latches. When the unit reaches the site, workers unfold the four walls upward and outward, lock the latches, and the structure becomes a rigid, weathertight box — no on-site welding and no craning of individual wall panels. Because the most labour-intensive parts (frame, roof, folded walls) leave the factory as one integrated unit, site work is limited to unfolding and locking. That is why installation time is measured in minutes per unit rather than hours. Item Folding Container House (verified specification) Expanded size (L × W × H) 5900 × 2500 × 2470 mm Folded size (L × W × H) 5900 × 2500 × 400 mm Volume compression Approx. 1/6 of expanded volume Connections Hinges and lock latches (factory-installed) Packing per 40HQ 10 units (50 mm wall panels) / 8 units (75 mm wall panels) Installation 4 steps, approx. 15 minutes per unit 2. How Many Folding Container Houses Fit in a 40HQ Container? The folded height of 400 mm is what makes the packing density possible. Stacked inside a standard 40-foot high-cube container (12.03 × 2.35 × 2.69 m internal), the units nest together with their wall panels protected between frames. 10 units per 40HQ — with 50 mm wall panels. The thinner panels take less stacked height, so one more unit fits into the same container. 8 units per 40HQ — with 75 mm wall panels. The thicker panels improve the feel of the interior envelope, at the cost of one stacking position per container. For procurement teams, this is the key trade-off: panel thickness versus units per container. A 100-bedroom camp shipped with 75 mm panels needs 13 containers instead of 10 — the freight difference is often the deciding factor, and the right answer depends on the climate and standard of the camp you are building. 3. Folding vs Flat-Pack: Which Ships Better? Both are space-saving designs, but they solve different problems. Flat-pack units ship as knocked-down kits — every panel and beam packed separately — while folding units ship as pre-assembled fold-down boxes. The practical differences: Criterion Folding Container House Flat-Pack Container House Units per 40HQ 10 (50 mm panels) / 8 (75 mm panels) 14 (knocked-down kits) Installation per unit 4 steps, approx. 15 minutes Approx. 4 workers × 3 hours (bolting, no welding) Site skill required Unfold and lock latches Assemble panels and bolt frames Best for Fast deployment, repeated relocations, labour-scarce sites Large permanent camps, maximum container density Standard expanded size 5900 × 2500 × 2470 mm 6055 × 2990 × 2896 mm A common pattern on remote projects is to mix both: folding units for dormitories that must open on day one, and flat-pack units for offices, kitchens and wet modules assembled in parallel. Wanbang supplies both lines from the same factory group, so mixed orders ship together. 4. Typical Uses on Remote Projects Folding units earn their keep wherever many bedrooms must open quickly with minimal site labour: Mining and construction camps — dormitory blocks that unfold as the site is still being graded; Labour camps in hot climates — pair the units with the insulation specification your project requires (50 mm or 75 mm panels) before shipping; Relocatable site offices and welfare rooms — fold down, truck to the next site, unfold again; Emergency and relief accommodation — one 40HQ delivers ten ready-to-finish rooms. Wanbang has deployed modular camps for projects including the Indonesia Tsingshan nickel industrial park, the Nigeria Hengxing steel plant camp and the Chile G15 power transmission project — delivered across special geographic conditions in more than 50 countries. Frequently Asked Questions How many foldable container houses fit in a 40ft container? 10 units with 50 mm wall panels, or 8 units with 75 mm wall panels, per 40HQ high-cube container. The folded height of 400 mm — about one-sixth of the expanded volume — is what allows this density. How long does it take to install a folding container house? About 15 minutes per unit in four steps: position the folded pack, unfold the walls, lock the latches, and complete the connections. No on-site welding is required. What is the folded size of a folding container house? 5900 × 2500 × 400 mm (L × W × H). When expanded it becomes 5900 × 2500 × 2470 mm — a usable interior height of about 2.4 m after floor and roof panels. Should I choose 50 mm or 75 mm wall panels? 50 mm panels maximise shipping density (10 per 40HQ); 75 mm panels give a heavier wall build (8 per 40HQ). For hot-climate camps, tell us the project location and insulation requirement, and we will confirm the specification that fits both the climate and your freight budget. Need a camp quote based on folding units? Tell us the number of bedrooms, panel preference and destination port — Wanbang will confirm the packing plan and freight estimate. Contact Wanbang for a factory-direct proposal.Contact: Jade · Tel: +86 13312807790 · WhatsApp: +966 50 2737 116 · Email: Jade.li@gdwbhouse.com Folding vs flat-pack compared side by side, including loading and install times: https://www.gdwbprefabhouse.com/flat-pack-vs-folding-container-house-which-ships-more-units-and-installs-faster

How to Import Container Houses from China: From Inquiry to On-Site Installation Importing container houses from China runs in seven steps: define the use case and unit type, confirm drawings and configuration, agree commercial terms, follow production and quality checks, approve the packing and container-loading plan, ship and clear customs, then install on site. Most delays and cost overruns happen at steps two and five — unclear specifications and an unplanned loading plan — not at sea. This guide covers the parts a manufacturer controls and can document. Customs classification, duty rates and local building approvals vary by destination and change frequently; for those, your freight forwarder and local certifier are the authority. Step 1: Define the Use Case and the Unit Type The phrase “container house” covers three different products with very different logistics. Choose before you ask for a quote, otherwise you will compare prices for different things. Type Best for Logistics character Quick-assembly flat-pack Camp offices, dormitories, welfare rooms, multi-unit blocks Ships as loose parts; highest loading density; assembled on site Folding container Projects that relocate often; rapid deployment Ships pre-assembled and folded; unfolds on site Double-wing expandable Fewer, larger self-contained living units Ships folded; unfolds to full width; lowest loading density Ask the factory for the dimension drawing of the exact model you are buying, in both transport and in-use states. Do not plan a site layout from a brochure size — confirm it against the drawing before production. Step 2: Confirm Drawings and Configuration A supplier can only quote accurately once the configuration is fixed. Confirm the items that change cost and compliance: Layout: number of rooms, bathroom, kitchen, and whether partitions are fixed Wall panel core and thickness, plus insulation requirements for your climate Door and window type, and the electrical standard of the destination country Floor finish, ceiling, and whether wiring is concealed Frame specification, including galvanizing and corrosion protection Wanbang's flat-pack line uses a high-strength galvanized steel frame with rock-wool sandwich panels that provide thermal insulation, fire resistance and moisture resistance — the specification to request in writing if your site is hot, humid, or remote. Step 3: Agree Commercial Terms Get every term in the contract, not in a chat message. The commercial fields published on Wanbang product pages are a useful reference for what to expect in writing: minimum order quantity of one unit, payment structured as 50% deposit and 50% before shipment, shipment from Nansha port (other Chinese ports available), and a published lead time of 10–15 days. Confirm the actual figures for your order and model in the contract — lead time depends on configuration and quantity. Step 4: Follow Production and Quality Checks Ask for evidence at three points: mid-production photos, pre-packing inspection, and container-loading photos. Wanbang documents inspection at each production stage and reports a 100% finished-product pass rate. If your project value or local compliance risk is significant, appoint an independent inspector before the balance payment. Step 5: Approve the Packing and Container-Loading Plan The loading plan decides your freight cost per unit. Ask how many units fit in a 40HQ, how much is pre-assembled in the factory versus assembled on site, and what goes into each container. Packing method Approx. units per 40HQ Trade-off Loose parts (knock-down) ≈ 14 sets Lowest freight per unit; more site assembly Pre-assembled packing ≈ 10 sets Less site work; higher freight per unit Pre-assembled, stacked ≈ 6 sets Least site work; highest freight per unit Figures above are Wanbang's published loading data for the flat-pack product line and vary by wall panel thickness and model — treat them as a planning baseline and confirm against your final specification. Step 6: Ship and Clear Customs Sea freight is standard for container houses; your forwarder selects between FCL and other options based on unit dimensions. Prepare the usual export set — commercial invoice, packing list, bill of lading and certificate of origin — and confirm document requirements with your forwarder. On customs, duties and local approvals: HS classification, duty rates, and building-approval or certification requirements differ by country and change often. Confirm them with your licensed customs broker, freight forwarder or local certifier before shipment. A manufacturer can supply product documentation and test data, but should not be your source for duty rates or local code compliance. Step 7: Install on Site Installation planning starts before the ship leaves: prepare the foundation, confirm crane access if required, and agree who provides the local crew. Support scope varies by product: Quick-assembly flat-pack: no welding and no crane needed — about 4 workers complete one unit in around 3 hours. Folding container: unfolds in 4 steps in roughly 15 minutes. Double-wing expandable: arrives folded and unfolds into the full-width layout on site. Ask the factory what comes in the box: drawings, installation manuals, instructional video, and remote guidance during your first units. FAQ How many container houses fit in a 40HQ container? For Wanbang's flat-pack line, published figures are about 14 sets per 40HQ shipped as loose parts, roughly 10 sets pre-assembled, and about 6 sets pre-assembled and stacked. Confirm against your model and wall panel thickness — the packing method is the variable that matters. How long does installation take? A quick-assembly flat-pack unit takes about 4 workers around 3 hours with no welding and no crane. A folding unit unfolds in 4 steps in roughly 15 minutes. Site preparation and foundation work are separate from these figures. Do I need a crane to install? Not for the quick-assembly flat-pack system, which is designed for bolted assembly without welding or crane lift. Folding and expandable units are lifted into position and then unfolded — confirm the requirement for your model before the container arrives. What payment terms are typical? The structure published on Wanbang product pages is 50% deposit with 50% balance before shipment. Always confirm the exact terms, currency and incoterms in the contract. Who handles customs clearance and import duties? Your freight forwarder or licensed customs broker. The factory provides commercial and technical documents; duty rates, HS classification and local approvals must be confirmed locally, as they vary by country and change over time. Planning an import? Contact Wanbang for a specification sheet, packing plan and installation documentation for your project.Contact: Jade · Tel: +86 13312807790 · WhatsApp: +966 50 2737 116 · Email: Jade.li@gdwbhouse.com

Flat-Pack vs Folding Container House: Which Ships More Units and Installs Faster? Short answer: flat-pack container houses ship more units per container — 14 sets in one 40HQ — while folding container houses install far faster, at about 15 minutes per unit versus roughly 3 hours. If your cost driver is freight, flat-pack wins. If your constraint is site labour or speed, folding wins. Most projects choose based on which of those two pressures is heavier. Both types are factory-built steel-framed modular units shipped from China for workforce camps, site offices and remote accommodation. The difference is in how they travel. A flat-pack unit leaves the factory as loose components — panels, columns, beams and floor boards packed flat and stacked — and is assembled on site. A folding unit leaves the factory as a complete box that collapses to a fraction of its height and is unfolded on site. Side-by-side: the numbers that actually decide the order Item Quick-Assembly Flat-Pack Folding Container House Set-up dimensions 6055 × 2990 × 2896 mm 5900 × 2500 × 2470 mm Usable floor area per unit ≈ 18 m² ≈ 14.8 m² Shipping form Loose components, flat-packed Complete unit folded to 5900 × 2500 × 400 mm Volume when packed Flat stacked panels Compressed to about 1/6 of set-up volume Loading per 40HQ 14 sets 10 sets (50 mm wall panel) / 8 sets (75 mm wall panel) Installation About 4 workers, ~3 hours per unit About 4 steps, ~15 minutes per unit Site equipment No welding, no crane required Unfolding sequence, no welding Why the “folding” one ships fewer units This is the part buyers find counter-intuitive. A folding unit compresses to roughly one sixth of its volume — so it should ship better, right? In practice, what you are shipping is still a whole box: floor, roof, wall panels and frame folded together, 400 mm thick once collapsed. A flat-pack unit, by contrast, is broken down into its individual parts, which stack with almost no wasted air between them. The result: 14 flat-pack sets per 40HQ against 10 folding sets (8 sets if you specify the thicker 75 mm wall panels). On a project that needs 40 or 100 units, that difference is several containers of freight, and freight is often the single largest variable cost in a container house order. Where the folding unit wins: time on site Flat-pack assembly is straightforward — bolted connections between columns and top/bottom beams, with wall and floor panels fixed in sequence — but it is still an assembly job: about four workers and three hours per unit. Folding units reverse that. The unit arrives as a finished box, and the site work is a short unfolding sequence measured in minutes. That matters in three situations: Tight mobilisation windows — a camp that must be habitable this week rather than next month. Expensive or scarce site labour — remote mining and power projects where a skilled crew costs far more than a container slot. Repeat relocation — camps that move as the work front moves along a transmission line or haul road. Usable space: flat-pack gives you more per unit Per unit, the flat-pack footprint is larger: roughly 18 m² against roughly 14.8 m² for the folding unit. If you are fitting dorms, a kitchen block or a site office into a fixed number of units, that difference changes how many units you have to buy in the first place — which partly offsets the freight advantage, and is worth doing the arithmetic on before you commit. How to choose in practice Choose flat-pack when Freight cost per unit is your main lever — 14 sets per 40HQ is the best loading figure we can offer. The camp is a fixed, long-term installation. You need the larger per-unit floor area for dorms, offices or kitchen blocks. You want individual components replaceable without scrapping a whole unit. Choose folding when Speed of deployment is the binding constraint. Site labour is expensive, limited, or short-windowed. The camp is expected to be relocated during the project. You prefer a unit that arrives finished and simply opens. Practical tip: send us your headcount, site location and project duration, and we will run both options through the same container-loading calculation. The answer usually becomes obvious once freight and site labour are priced against each other for your specific country. Frequently asked questions Which type is cheaper to ship? Flat-pack, in units per container: 14 sets per 40HQ versus 10 sets (50 mm panels) or 8 sets (75 mm panels) for folding units. On large orders that typically means fewer containers. Which type installs faster? Folding units — roughly 15 minutes per unit through a four-step sequence, compared with about three hours for a four-worker crew assembling a flat-pack unit. Can both types go in the same shipment? Yes. Mixed shipments are common when a project needs fast-deployment units for the first phase and flat-pack units for the permanent camp. Loading plans are calculated per order, because the two types do not stack the same way. Which is better for a long-term fixed camp? Usually flat-pack. It gives more usable area per unit, assembles into a rigid bolted structure, and is designed for a service life measured in years rather than a temporary stopover. Folding units suit shorter or mobile deployments better. Do both types need a crane or welding on site? Flat-pack assembly needs no welding and no crane. Folding units are set down and unfolded. Site requirements still depend on ground conditions and your foundation design, which we confirm per project. If you are comparing the two for an upcoming project, our team can quote both options side by side, including a container-loading plan for your destination port. Request a flat-pack vs folding quotation and loading plan Related reading: What Is a Folding Container House? Folded Size, 40HQ Loading and 15-Minute Installation Explained

A modular building is a factory-made structure shipped in sections and bolted together on your foundation. Wondering what is a modular building? Modular construction explained simply means most of the construction happens indoors under controlled quality. As shown below, analysts expect steady global demand. Modular projects were completed 30% faster on average than site-built projects. On larger projects, that time saving can mean months of added revenue. For international buyers in 2026, that speed converts into predictable budgets and fewer weather delays. This guide shows you how modular construction differs from traditional site-built methods and how to buy across borders. Key Takeaways Modular buildings arrive as factory-made sections. Workers bolt them together on site. This method cuts project time by 30–50%. Factory production controls quality. Modular methods reduce waste. A 2024 study reports 78.8% less waste. Modular buildings come in three forms. Permanent forms stand on site. Relocatable forms move often. Volumetric forms create whole structures. International buyers should verify supplier certifications. They must confirm export history plus total project costs. Plan foundations early. Plan shipping early. Review local building codes. This step prevents delays. It ensures smooth assembly. What Is a Modular Building and What Is Modular Construction? Core Definition and Key Components A modular building is a structure built in factory-made sections and assembled on site. You can think of it as a building that arrives in pieces, ready to bolt together. This is the simple answer to what is a modular building? Modular construction explained further means that most of the structure takes shape indoors, under controlled conditions, before delivery. What is modular construction as a process? It is a factory-based method where workers build modules on a production line. They start with a floor cassette, then attach wall panels and a ceiling panel, usually with screws. The walls transfer vertical loads, so the longitudinal walls of an upper module sit directly on the walls of the module below. Corner posts typically use 100 x 100 square hollow sections for compression resistance. Additional steel angles may appear in recessed corners for lifting and stability. Key components of a modular building system include steel frames, wall panels, floor panels, roof panels, and connection hardware. Wall panels use light steel C sections cold rolled to BS EN 10346, with 75–150 mm depth. Floor panels range from 150–250 mm depth, and open-sided modules may use deeper joists of 250–400 mm. Roof and ceiling panels often use a shallower parallel flange channel. Connection hardware includes bolted plates, fin plates, end plates, and self-drilling screws. Module-to-module connections usually use plates bolted on site. Panel-to-panel joints use mechanical fasteners, and welding is not required. The joint design supports repeated assembly and disassembly cycles with standardized components and common tools. Modular buildings sit on footers or a foundation prepared on site while modules are built in the factory. This parallel work is a core advantage of the construction method. Modular vs. Prefab, Panelized, and Site-Built You will see these terms used interchangeably, but they describe different approaches. The table below clarifies the differences. Aspect Modular Panelized Prefab Site-Built Process Modules produced off-site in a controlled factory, then transported and installed Wall, floor, and roof panels manufactured in a factory, shipped flat-packed, assembled on foundation Entire structure assembled on the lot from raw materials Timeline 30–50% faster than traditional construction; 60–90% of build done inside factory 20–50% faster than conventional on-site construction 18 to 36 months typical completion Modular construction differs from panelized prefab because modules arrive as three-dimensional units, not flat prefabricated components. Traditional construction relies on sequential trades on site, where weather and labor delays can cascade. Modular projects run factory work and foundation work in parallel, which reduces weather-related delays. This is why more international buyers choose modular buildings for remote or schedule-critical projects. Main Benefits and Drawbacks of Modular Buildings Speed, Cost, Quality, and Sustainability Modular buildings deliver faster timelines than site-built homes. Factory production and site preparation run at the same time. This parallel workflow shortens the construction schedule by 30–50% compared with traditional methods. You also gain predictable budgets because factory pricing locks in material and labor rates early. A modular building cost estimate stays stable from contract to delivery, which helps you plan the total project cost with confidence. Factory quality control gives you another advantage. Workers build modules indoors, so rain, wind, and extreme temperatures never compromise the materials. This controlled setting produces tighter tolerances and fewer defects. Sustainability also improves. A 2024 study in the ASCE Journal of Management in Engineering found that modular factory construction reduced overall construction waste by an average of 78.8% compared with site-built construction. A WRAP case study on Yorkon off-site volumetric construction reported on-site waste reduction of 70%–90%. These figures show how modular construction supports greener outcomes. Source Type Reported waste reduction ASCE Journal of Management in Engineering (2024) Peer-reviewed journal study 78.8% average reduction WRAP case study on Yorkon off-site volumetric construction Industry case study 70%–90% on-site reduction Relocatability and Financing Challenges Relocatability stands out as a key benefit for temporary or remote projects. You can dismantle a modular building, move it to a new site, and reassemble it with common tools. This flexibility suits workforce camps, disaster relief housing, and event facilities. The construction method also allows horizontal and vertical expansion as your needs grow. Financing often poses the biggest hurdle for international buyers. Traditional lenders hesitate because they cannot easily verify or foreclose on a building that sits in an overseas shipyard or on a factory assembly line. Cash conversion cycle gaps between material ordering, factory assembly, shipping, customs clearance, and final on-site assembly trap capital for months. Several financing options can help you overcome these barriers. Financing Challenge Financing Option Lenders skeptical of offsite manufacturing collateral Project-backed letters of credit, export-import financing, milestone payments Cash conversion cycle gaps across shipping and customs Scalable Developer Lines of Credit (DLC) with bonded inventory Time needed before revenue generation Cross-Border Usance Letters of Credit (90–180 day limits) Manufacturer transaction risk Government-Backed Export-Import Credits High interest rates on large modular projects ESG and Green Bond eligibility, lowering rates by up to 150–250 basis points Wanbang's flat pack container house shows how these benefits work in practice. Each 40HQ container holds 14 sets, which cuts shipping costs per unit. Lead time runs 10–15 days depending on order quantity and customization. The factories hold ISO 9001, ISO 14001, and ISO 45001 certifications, and the products carry EU CE marking. These credentials give lenders and buyers documented proof of quality. Types of Modular Buildings and Their Applications Permanent, Relocatable, and Volumetric Modules The Modular Building Institute groups modular buildings into three main categories. Each category serves a different purpose, and your project requirements will determine which one suits you best. Category Also Known As Description Permanent Modular Construction (PMC) — Offsite prefabrication of single or multi-story structures in modular sections; can be integrated into existing structures or stand independently; completed with MEP, interior finishes, fixtures, and appliances. Relocatable Buildings (RB) Portable Buildings Partially or completely constructed structures that abide by set building codes; assembled in a controlled manufacturing facility; designed to be repurposed and transported to various building sites. Volumetric Modules Volumetric Construction Individual sections or modules assembled off-site in factories under controlled conditions; used to create complete structures; the modules themselves use the same designs and materials as traditional construction. Permanent modular construction (PMC) creates long-lasting buildings on fixed foundations. These modules are 60%–90% completed in a factory, then transported and assembled on site. They use the same materials and meet the same building codes as site-built facilities. Relocatable buildings, by contrast, are designed for repeated use. You can dismantle, transport, and reinstall them quickly on temporary foundations. This makes them ideal for emergency housing, temporary classrooms, and construction site offices. They may be classified as personal property, which can offer financing advantages. Permanent modular structures are permanent buildings intended to be long-standing and not moved or altered. Temporary modular building systems are resilient, built strong enough to be torn down and reinstalled. The most common differential between all types is whether the structure has a permanent foundation. Hybrid Systems for Homes, Offices, Schools, and Healthcare You can also combine modular construction with site-built elements in a hybrid system. This approach lets you use factory-built modules for complex, repetitive areas while building unique spaces on site. Common applications include workforce accommodation, site offices, dormitories, kitchens, dining halls, schools, and clinics. Wanbang's flat pack container house demonstrates the flexibility of a modular building system. The standard base unit measures 6,000 x 3,000 x 3,000 mm, with bolt-connected steel frames. You can expand units horizontally or vertically. This capability allows you to build multi-storey camp complexes for mining camps and remote worker accommodation. High-density workforce complexes can reach up to six storeys without secondary framing. For extreme climates, you can specify heavy-duty steel with C4/C5 marine-grade coating and storm resistance up to Category 4. A 150-unit camp in the Atacama Desert, Chile, shows how this system performs in harsh conditions. For mining camps, you need durable, quickly deployable worker accommodation that your crew can assemble with common tools. Modular camps deliver this outcome. They also offer the freight density you need for remote logistics—14 units fit in a single 40HQ container, which reduces shipping costs per unit and makes large-scale modular camps more economical. Step-by-Step Guide for International Buyers Design, Production, and Shipping Your first step is to define the product type, layout, exterior and interior details, and the destination-country electrical standard. You need these details before you request an accurate quotation. Confirm floor plans, electrical drawings, plumbing drawings, and structural materials before production begins. This planning stage determines your modular building cost and prevents expensive changes later. Customization options give you control over performance. You can choose rock wool or PU insulation for thermal and fire performance. Anti-corrosion coatings — alkyd painting, epoxy painting, or hot-dip galvanizing — protect the structure from rain, moisture, and rust. Double-glazed windows provide thermal and sound insulation. These choices extend service life to 15–30 years with basic maintenance. Factory production follows a traceable path. Raw-material inspection comes first, then in-process checks, then finished-unit testing. You can request progress photos and videos during production. Pre-shipment testing or video inspection gives you independent verification before the modules leave the factory. Shipping and customs require careful planning. A 40HQ container has an interior height of 2,700 mm and a volume of 2,694 ft³ (76.3 m³). This extra vertical clearance lets you stack more panels per container. Wanbang's flat pack container house loads 14 sets per 40HQ container. Production lead time runs 10–15 days after prepayment for standard modules. Prepare your Bill of Lading, Commercial Invoice, Packing List, Certificate of Origin, and Insurance correctly. Plan customs clearance, inland delivery, and site access before the house arrives. Foundations, Installation, and Final Approvals Site preparation starts with a level concrete foundation. Anchor bolts must match approved structural drawings. This alignment ensures bolt-on connections fit without guesswork. Check roof loading for snow, rain, and local wind. Drainage must direct water away from doors and foundations. On-site installation uses common tools. No welding or heavy lifting is required for panels. Local crews can complete assembly, which shortens your construction schedule. This approach also reduces construction time compared with site-built methods. You can expand units horizontally or vertically for multi-storey camp complexes. Final approvals depend on your region. In the European Union, you need Eurocode-based structural design, CE-marked construction products, and national energy-performance rules. Middle East projects require local municipality approvals and civil-defense fire requirements. Australia and New Zealand follow national and regional building codes with structural wind zones and bushfire provisions. Always verify local building regulations and local engineering requirements before you finalize your order. Local code compliance protects your investment and ensures your modular buildings pass inspection. Final selection should be based on verified engineering documents, applicable destination-country codes, factory quality records, material traceability, sample inspection, logistics planning and independent pre-shipment inspection. Your complete project cost includes the house price, customization, ocean freight, destination port charges, customs fees, inland transport, crane, foundation, and installation. International transportation and local building codes both affect your total project cost. Budget for every line item before you sign. How to Choose a Modular Construction Supplier in 2026 Certifications, Export Experience, and Warranty Look for a modular building manufacturer holding ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018. Certificates stay valid three years with interim surveillance audits. For European delivery, EU CE marking under EN 1090-1 is legally required for prefabricated steel structures. Standard / Marking What It Verifies ISO 9001:2015 Quality management processes ISO 14001:2015 Environmental management processes ISO 45001:2018 Occupational health and safety management processes EU CE Marking (EN 1090-1) Factory production control for structural steel Then check export experience. Confirm the supplier has delivered modular buildings to your target region. Wanbang Modular Building has shipped flat pack container houses across Europe, Africa, Southeast Asia, Australia, Middle East, and Latin America. Its 150-unit camp in the Atacama Desert, Chile proves performance for mining camps and remote worker accommodation. Ask how those modular buildings performed in harsh climates; request project photos. Warranty terms matter for every modular building. Look for a long-term quality warranty, free remote installation guidance, and lifelong online technical consultation. Each unit ships with a wiring diagram and foundation plan. Delivery Timelines and After-Sales Support Lead time drives construction schedule. Wanbang's flat pack container house ships 10–15 days after prepayment, depending on order quantity and customization. One benchmark delivered 5,000 detachable container houses within one month. Smaller standard orders hit the faster end of that range, shortening delivery for worker accommodation. Each modular building arrives with a bolt torque chart. Model the total project cost, not just the factory price; a modular building also needs installation planning. Include ocean freight, customs fees, inland transport, crane, foundation, and installation. Confirm the supplier provides drawings, pictures, and videos for guided installation. On-site supervision can be arranged. Construction time falls as local crews assemble modules with common tools; panels need no welding or heavy lifting. Always verify local building regulations and destination-country codes. Local code compliance protects your modular camps from inspection failures. A modular building manufacturer with proven exports and strong after-sales support keeps worker accommodation on schedule. That makes modular construction dependable for mining camps.   A modular building is a structure built in factory sections and bolted together on site. That single idea drives every decision you make as an international buyer. Use this practical buyer checklist before you commit. It covers budget, timeline, compliance, shipping, and supplier vetting. Category Buyer Checklist Item (2026) Budget Separate the factory package from site scope; price every exclusion before approval. Timeline Compare complete project schedules, not manufacturing duration alone. Compliance Confirm permits, fire, accessibility, and local energy codes early. Shipping Plan delivery routes, crane setup, and utility tie-ins. Supplier Vetting Require every bidder to price the same scope and list exclusions. Modular buildings reward careful planning. Choose a modular building manufacturer with proven exports, then request your customized quote from Wanbang today. FAQ How long does factory production and shipping take? Modular construction follows a fixed production schedule. Production runs 10–15 days after prepayment for standard modules. Larger order quantities extend that timeline. One benchmark order delivered 5,000 container houses within one month. Your destination port and shipping route determine final delivery time. What certifications should a modular building manufacturer hold? Look for ISO 9001, ISO 14001, and ISO 45001 certifications. For European imports, confirm EU CE marking under EN 1090-1 for structural steel. These documents prove factory quality control and worker safety standards. Can modular buildings handle extreme climates? You can specify rock wool or PU insulation, anti-corrosion coatings, and double-glazed windows. Wanbang's 150-unit camp operates in Chile's Atacama Desert. Heavy-duty steel with C4/C5 marine-grade coating resists coastal corrosion. How much site work does assembly require? You prepare a level concrete foundation with anchor bolts matching the structural drawings. Local crews assemble panels with common tools. Panels need no welding or heavy lifting. This simple workflow speeds deployment. What does the final price include? Your total project cost includes the house price, customization, ocean freight, destination port charges, customs fees, inland transport, crane, foundation, and installation. Separate the factory package from site scope when you compare supplier quotes.
