2 bedrooms mobile expandable container house is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
Item No :
T-024Order(MOQ) :
1 setPayment :
50% deposite,50% before shipmentProduct Origin :
Guangdong provinceColor :
customizedShipping Port :
Nansha portLead Time :
20-25 daysWeight :

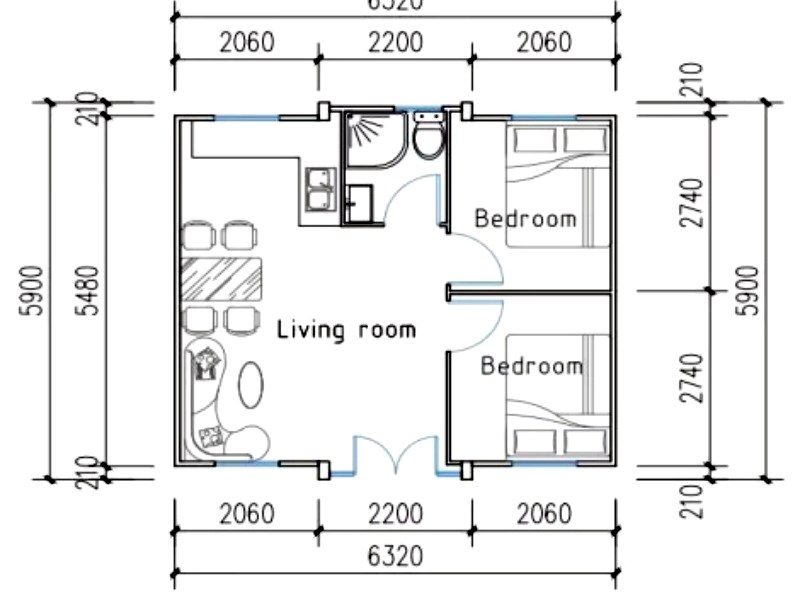

4000KGTwo-Bedroom Residential Home

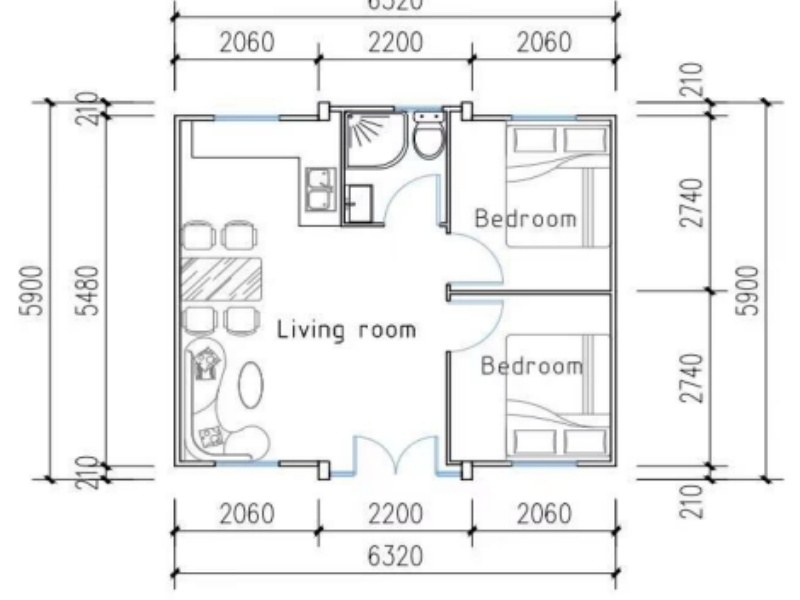

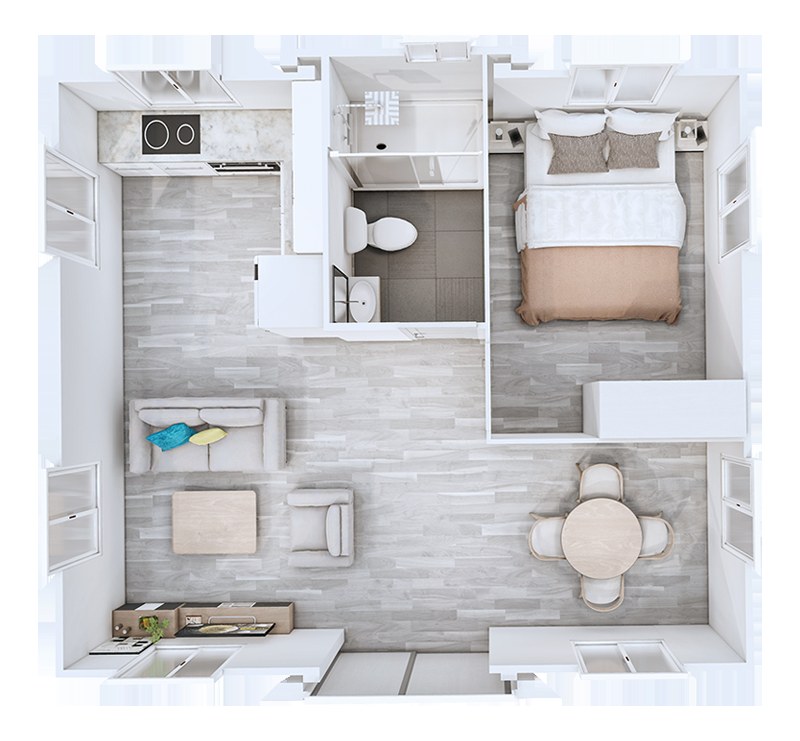

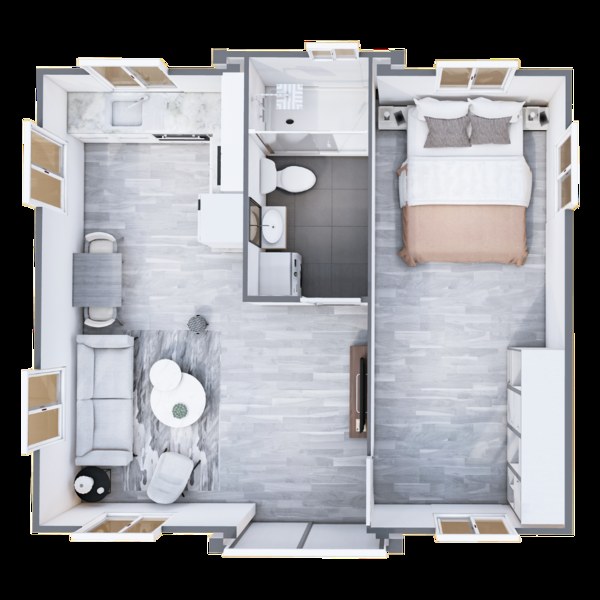

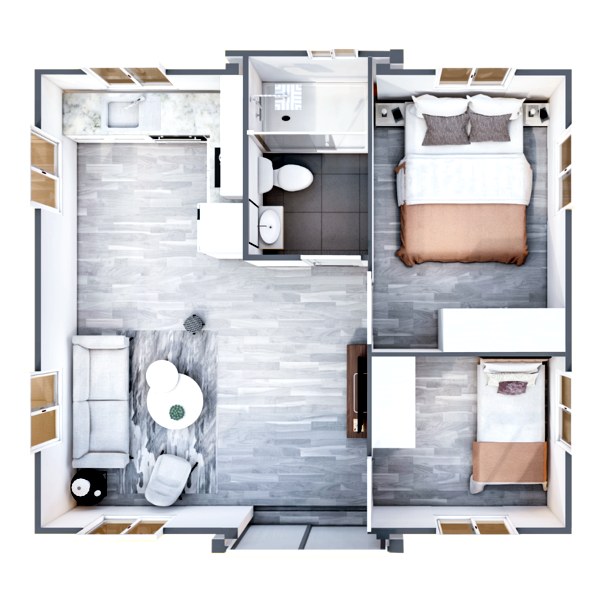

Residential Layout
The compact plan organizes two sleeping rooms around a shared living zone, with the kitchen and finished bathroom grouped for convenient household circulation.

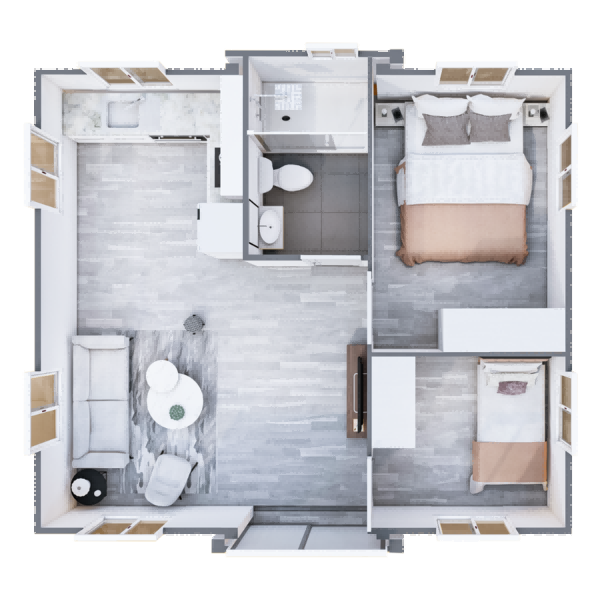

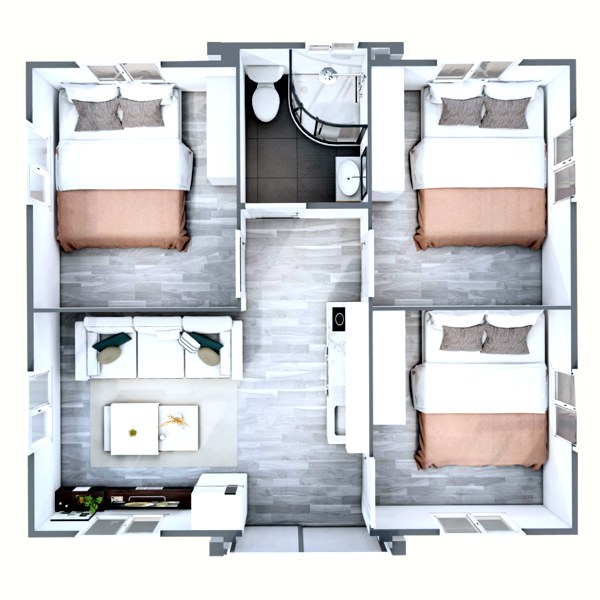

Three-Bedroom Layout

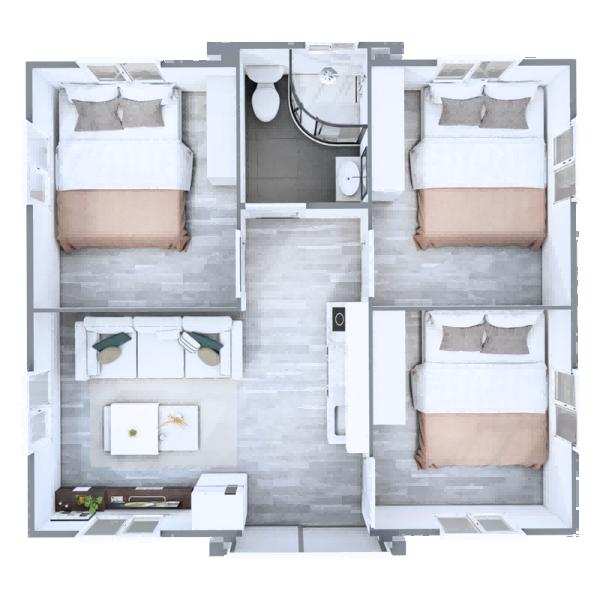

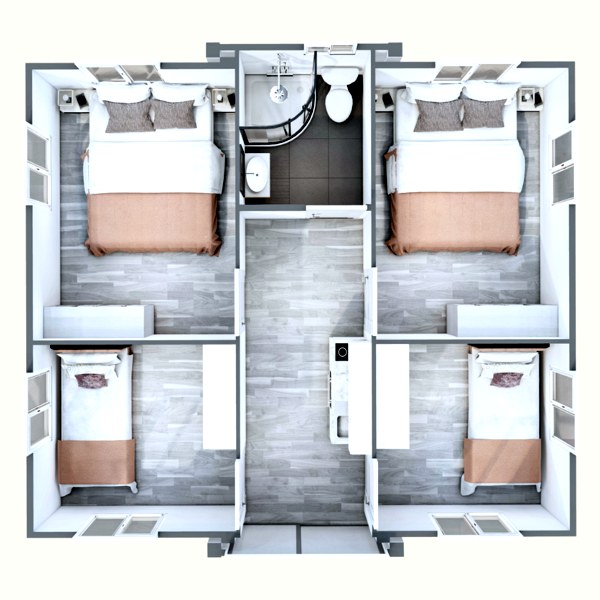

Four-Bedroom Layout A

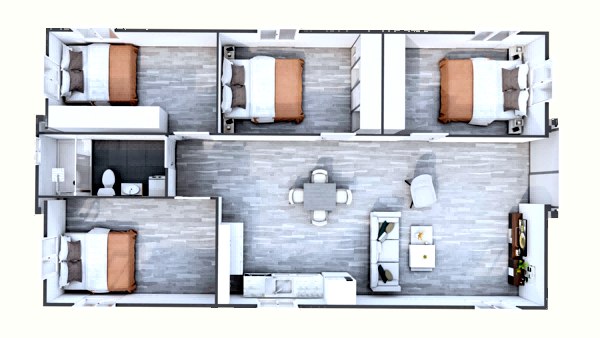

Four-Bedroom Layout B
Verified Basic Model
| Size Item | Parameter |
|---|---|
| Model | 20ft Expandable House Basic Model – Two-Bedroom Residential Layout |
| Overall Dimensions | L5900 × W6300 × H2480 mm |
| Expanded Size | L5900 × W6300 × H2480 mm |
| Internal Size | L5800 × W6000 × H2200 mm |
| Folded Size | L5900 × W2200 × H2480 mm |
| Expanded Floor Area | 37 m² |
| Net Weight | 3,500 kg |
| Maximum Power Load | 12 kW |
| Loading Capacity | 2 units per 40'HC |
| Component | Material / Specification |
|---|---|
| Main Structure | Fully galvanized steel structure |
| Roof Main Beam | 80 × 80 × 3.0 mm galvanized square tube |
| Roof Cross Beam | 2.0 mm galvanized folded steel |
| Floor Main Beam | 100 × 100 × 3.0 mm galvanized square tube |
| Floor Cross Beam | 100 × 100 × 3.0 mm galvanized square tube |
| Columns and Lifting Points | 3.0 mm folded steel |
| Top Side Folding Frame | 40 × 80 × 1.5 mm P-shaped tube; 40 × 80 × 1.5 mm square tube; 2.0 mm folded steel |
| Bottom Side Folding Frame | 40 × 60 × 1.5 mm and 80 × 80 × 3.0 mm square tubes |
| Folding Hinges | 13 mm galvanized steel hinges |
| Frame Finish | Electrostatic powder coating |
| Component | Material / Specification |
|---|---|
| External Central Roof | 1.0 mm steel sheet |
| Interior Roof Panel | 50 mm EPS sandwich panel |
| Ceiling Panel | 50 mm EPS sandwich panel |
| External Wall Panel | 50 mm EPS sandwich panel; 12 kg/m³ core density; 0.35 mm color-coated steel on both faces |
| Interior Partition Panel | 50 mm EPS sandwich panel |
| Component | Material / Specification |
|---|---|
| Central Floor | 18 mm fiber-cement board |
| Side Floor Panels | 18 mm fire-resistant magnesium-oxide board |
| Surface Flooring | 4 mm timber-look SPC flooring |
| Main Entrance Door | Broken-bridge aluminum entrance door |
| Windows | 930 × 930 mm aluminum sliding windows |
| Bedroom Doors | Steel doors |
| Circuit Protection | 1 residual-current device and 4 miniature circuit breakers |
| Lighting | LED round ceiling lights |
| Sockets | Position and quantity configured for the residential layout |
| Wiring | 6 mm² main/water-heater cable; 4 mm² kitchen/AC; 2.5 mm² general sockets; 1.5 mm² lighting |
| Area | Residential Configuration |
|---|---|

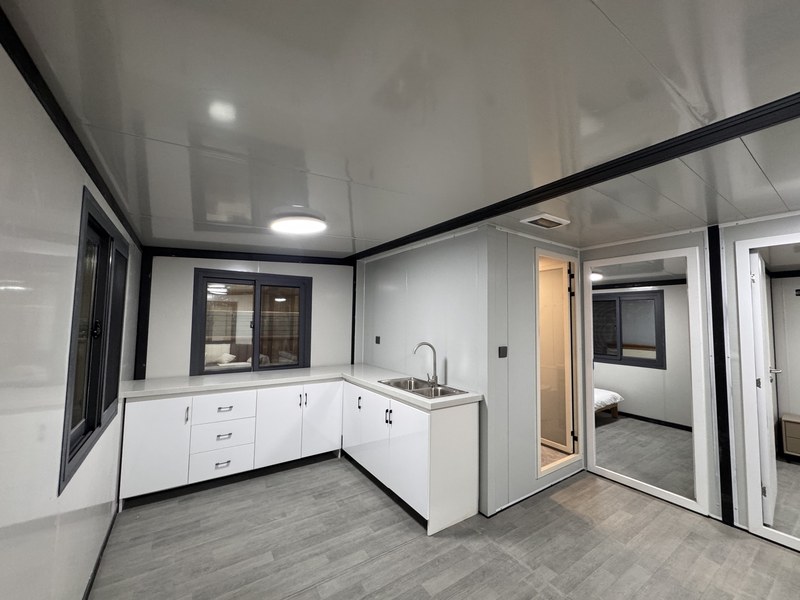

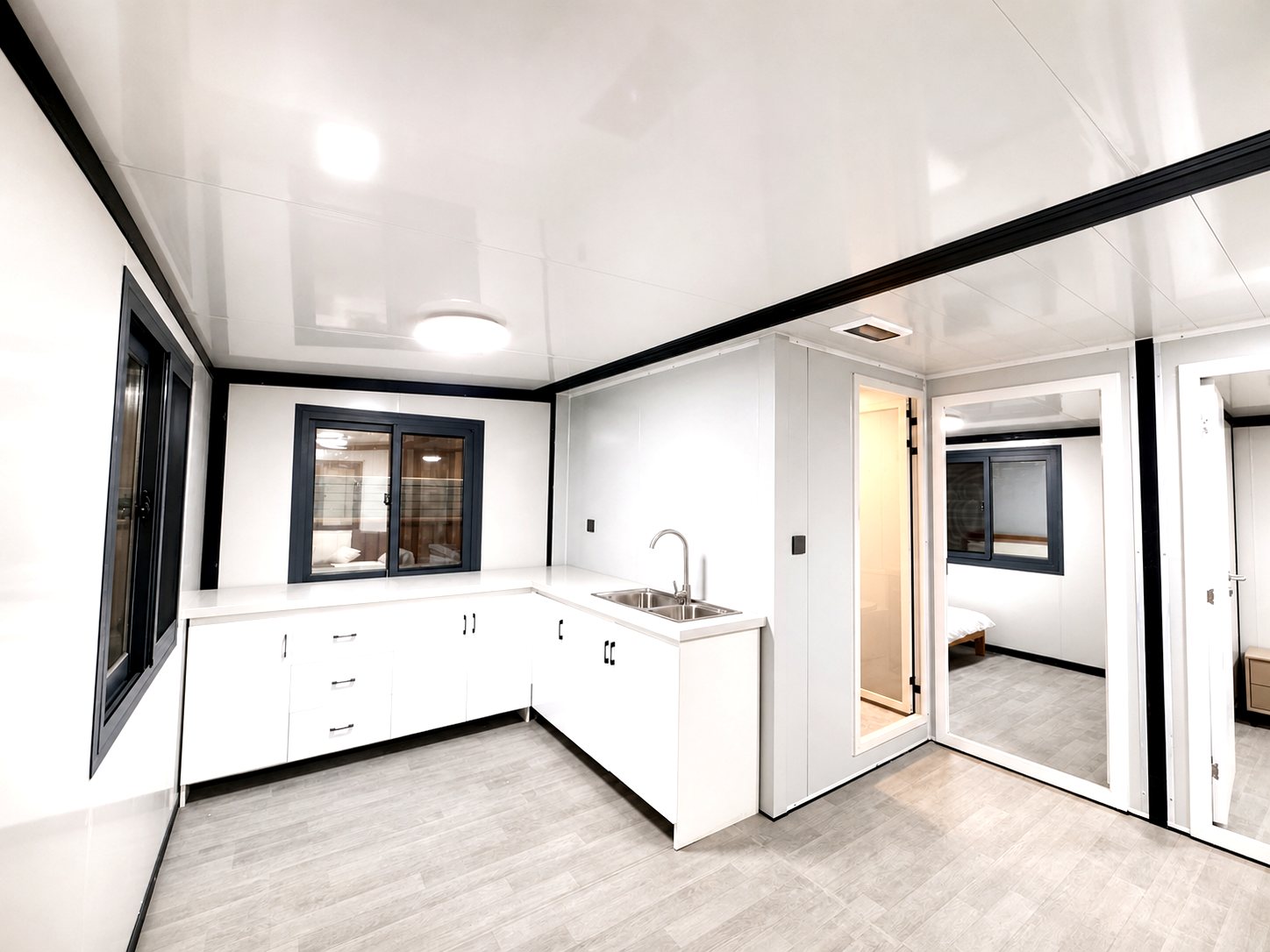

| Kitchen | L-shaped cabinet arrangement with sink and faucet |
| Bathroom | Partition panels, shower set, washbasin, toilet, mirror, cabinet, sliding shower door, floor drain, water-supply and drainage piping |
| Reference | Parameter |
|---|---|
| Loading Capacity | 2 folded units per 40'HC |
| Delivery Form | Compact folded expandable unit prepared for container transport |

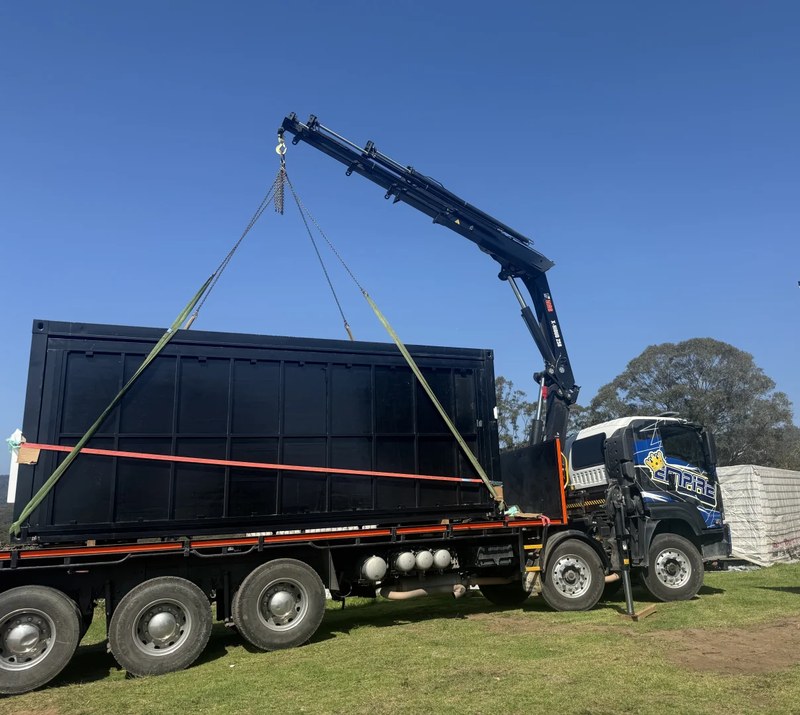

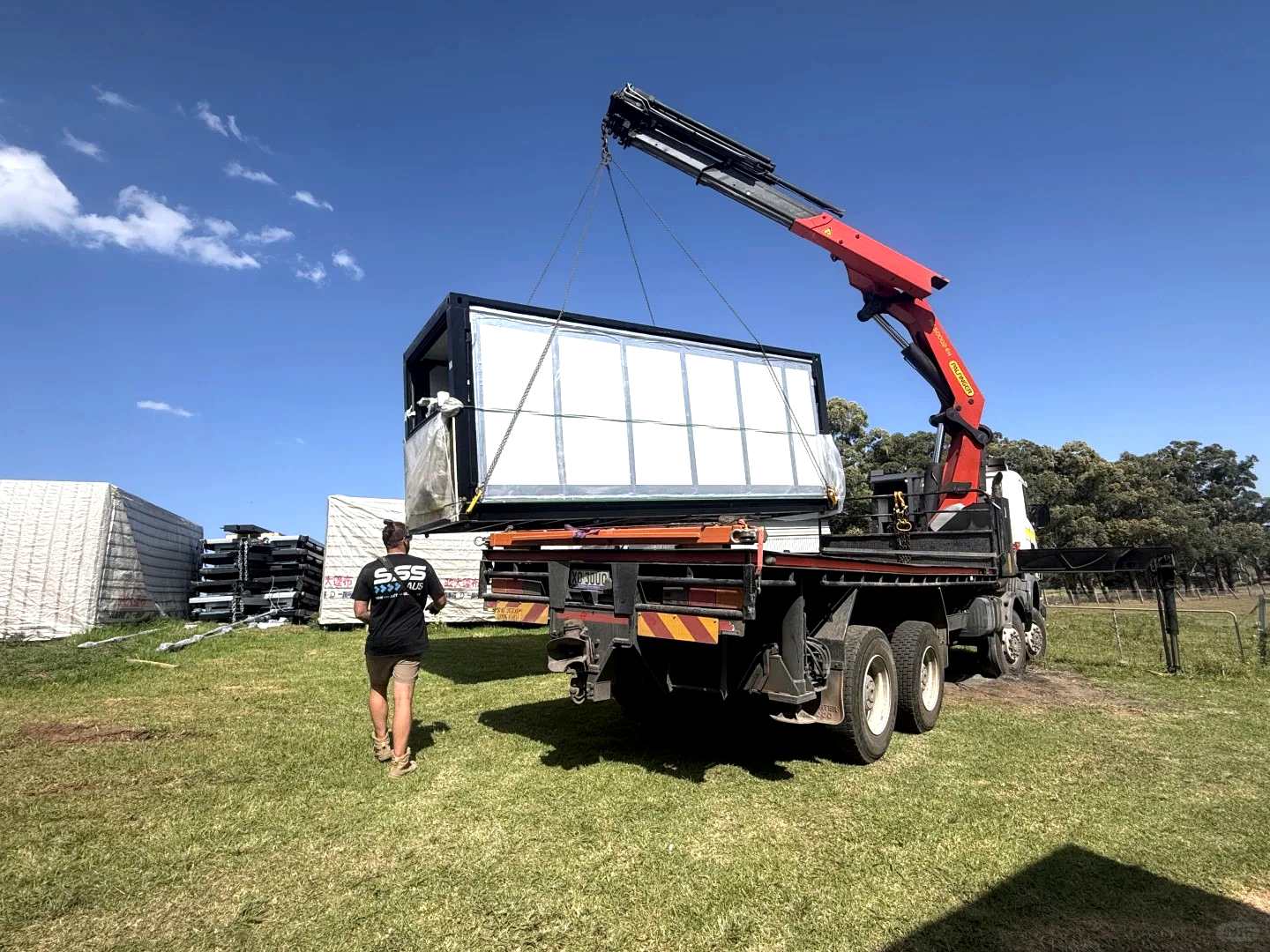

| Site Placement | Crane or truck lifting onto the prepared residential foundation |
| Final Installation | Unfold the side wings, secure structural connections and connect approved utilities |
Residential Advantages
Clear private and shared residential zones.
Prepared for efficient transport before expansion.
Kitchen and bathroom provisions support daily home use.
Structure, panels, flooring and electrical items specified together.

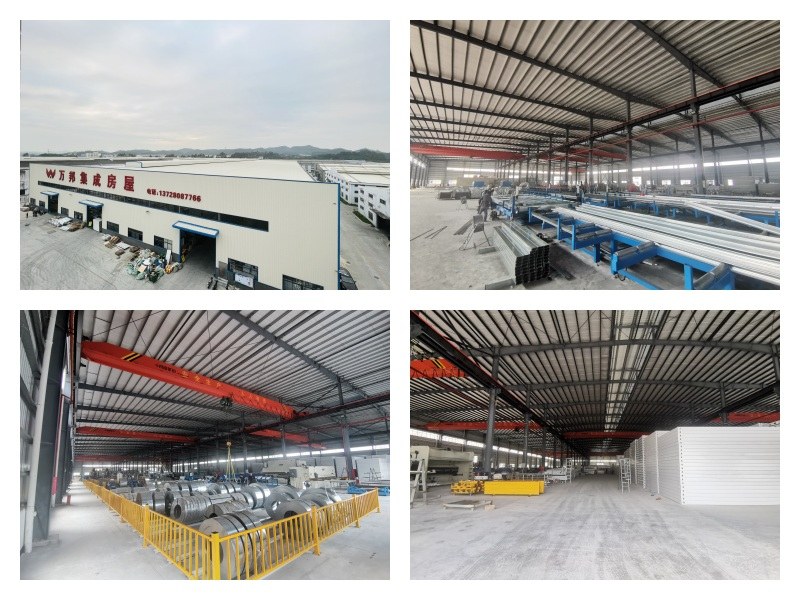

Manufacturing Reference
Guangdong Wanbang Modular Building manufactures prefabricated residential structures and coordinates the frame, enclosure and interior systems for delivery-ready expandable homes.
Common Questions
The minimum order quantity is one unit.
The reference lead time for this 20ft Basic Model is approximately 20 days and should be reconfirmed for the selected quantity and residential configuration.
Yes. Door and window positions, finishes and selected interior provisions can be coordinated for the confirmed home layout.
