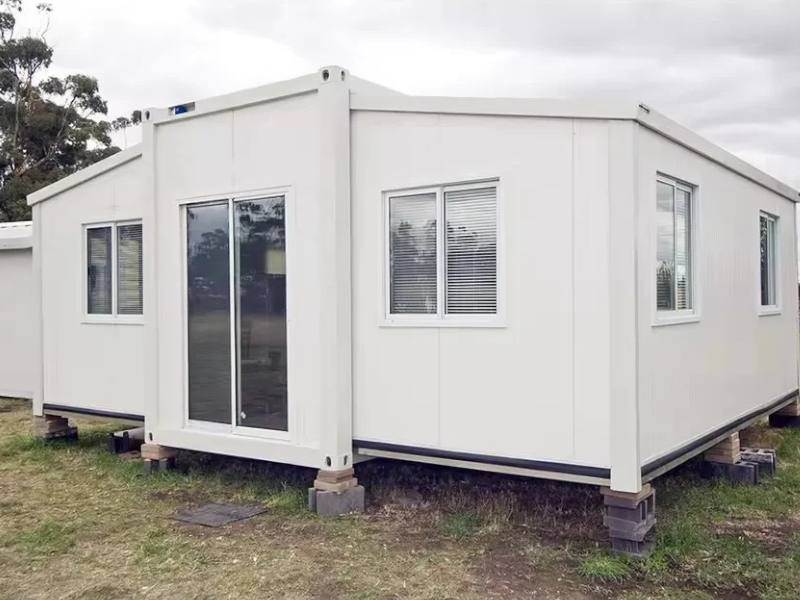

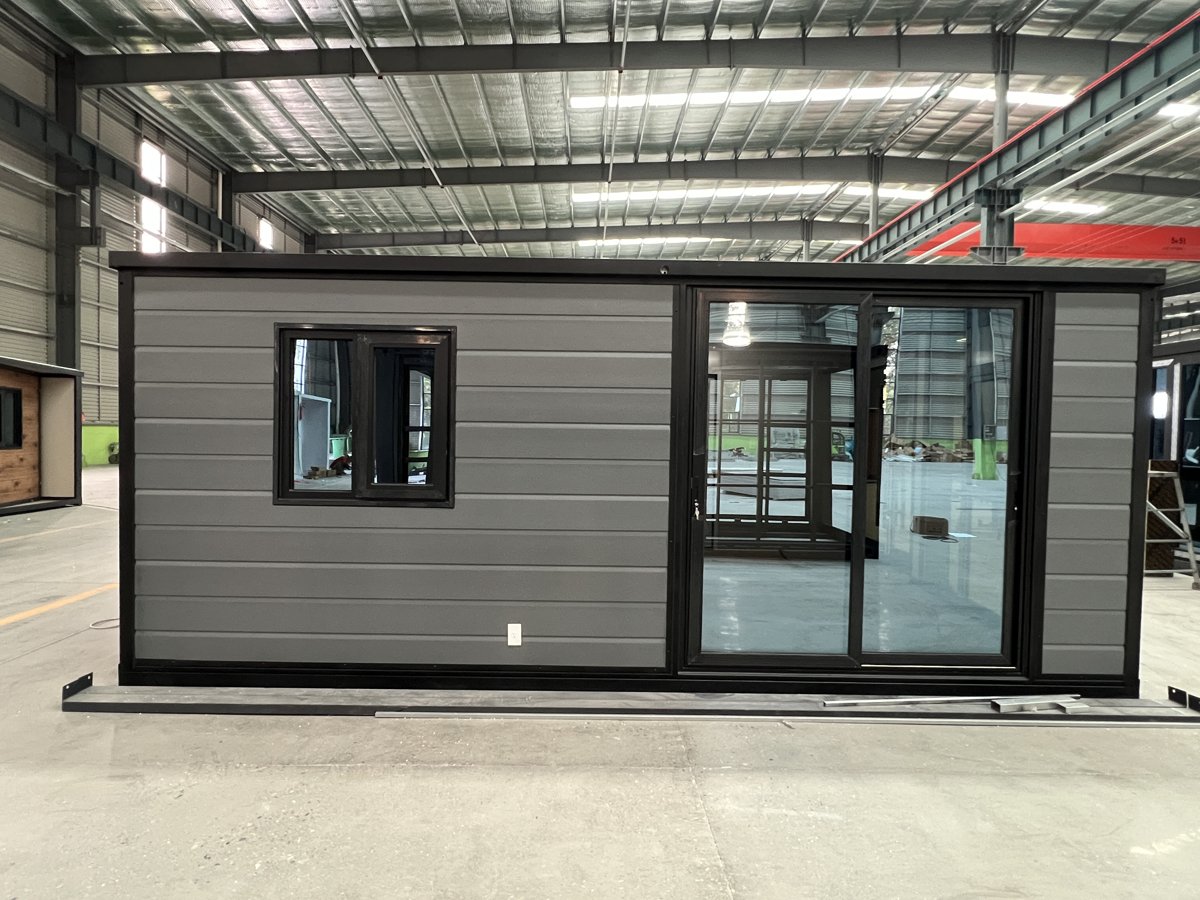

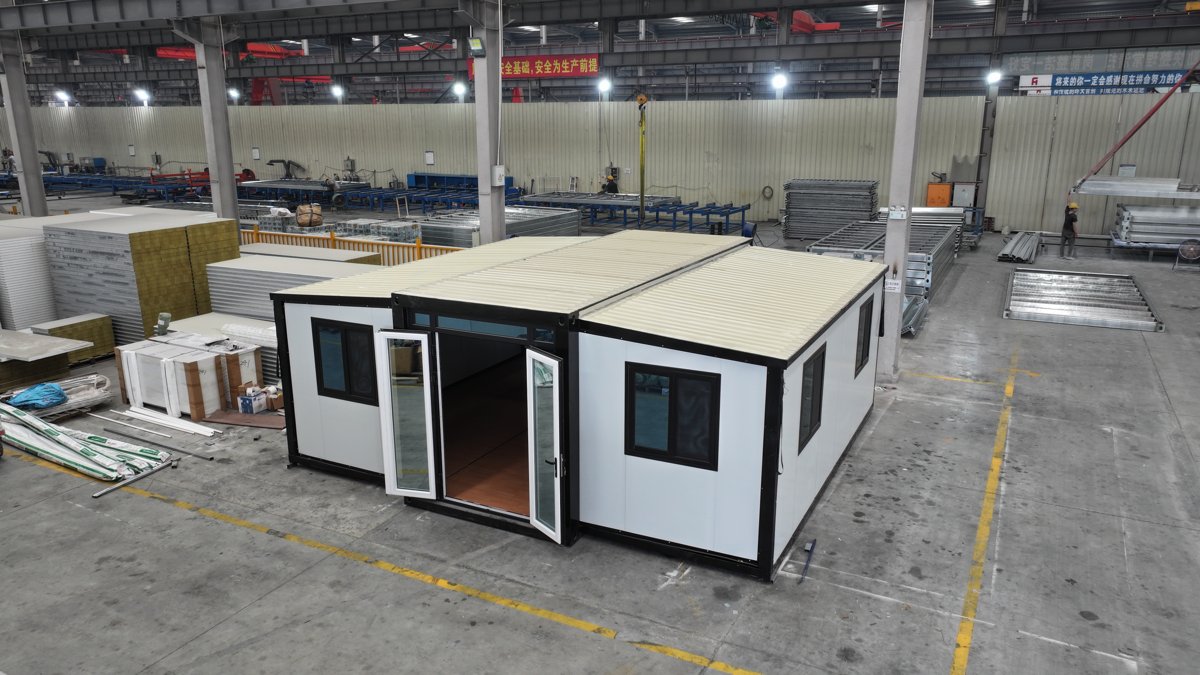

The 20ft Expandable Container House: A cost-efficient, eco-modular solution. Featuring a lightweight steel frame with high-strength sandwich panels for rapid bolt-on assembly – deployable anywhere within days.
Item No :
T-021Order(MOQ) :
1 setPayment :
50% deposite,50% before shipmentProduct Origin :
Guangdong provinceColor :
customizedShipping Port :
Nansha portLead Time :
10-15 daysWeight :
4000KG

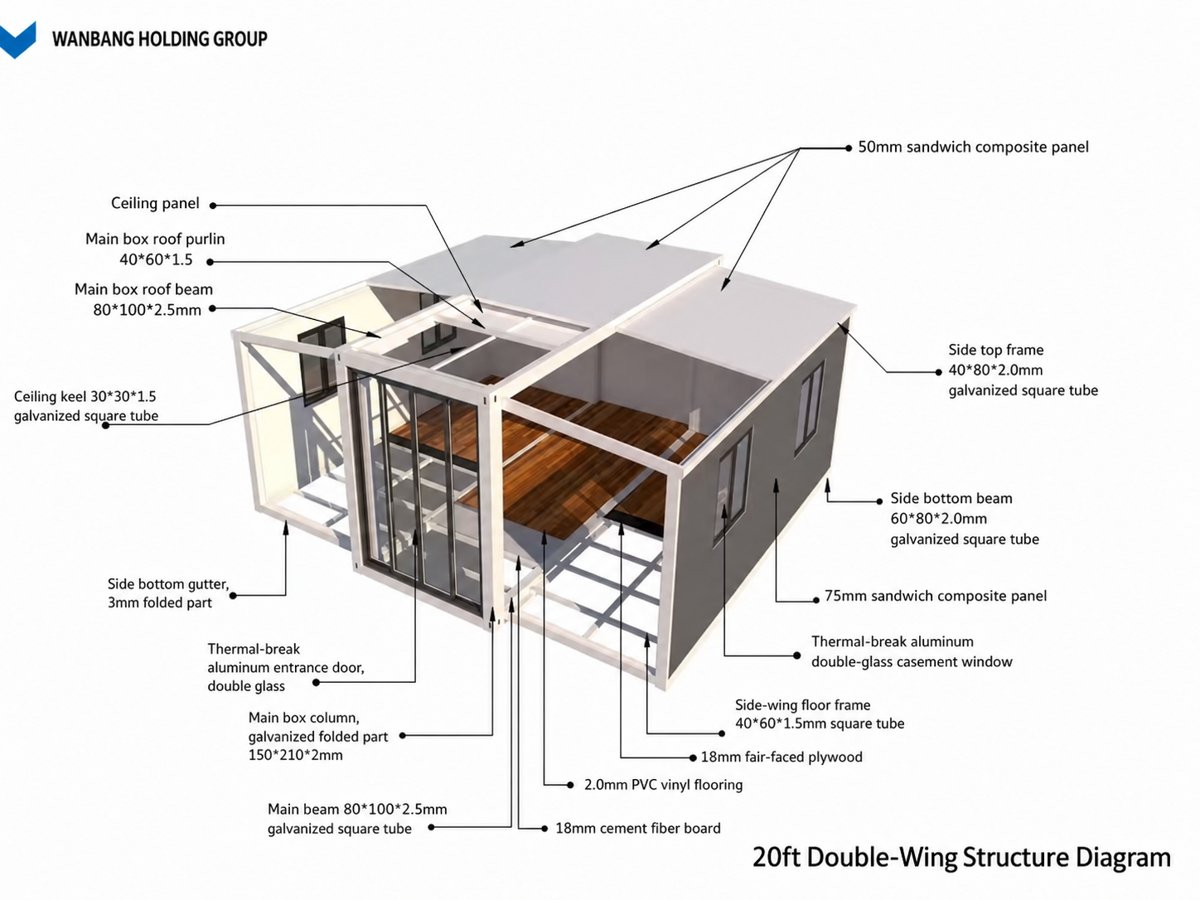

The original Chinese structure breakdown image has been translated into English while keeping the diagram structure unchanged.
| Layout | Suitable Use |
|---|---|

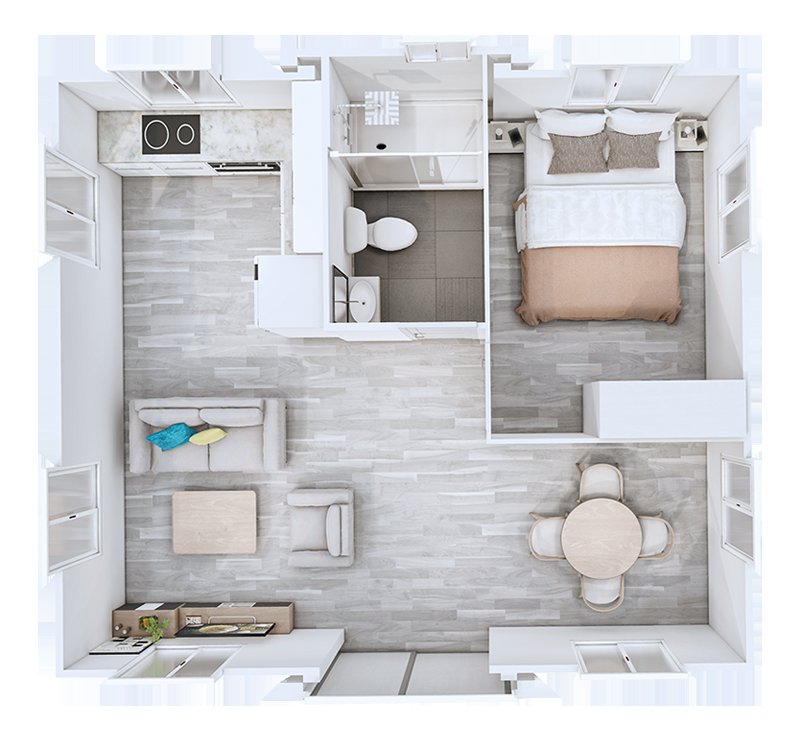

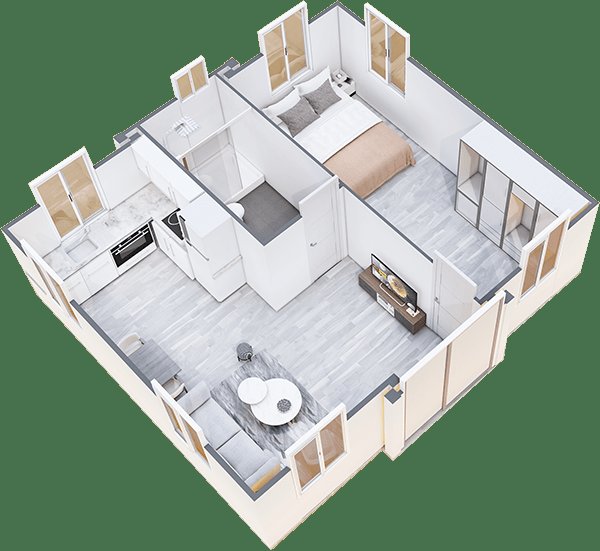

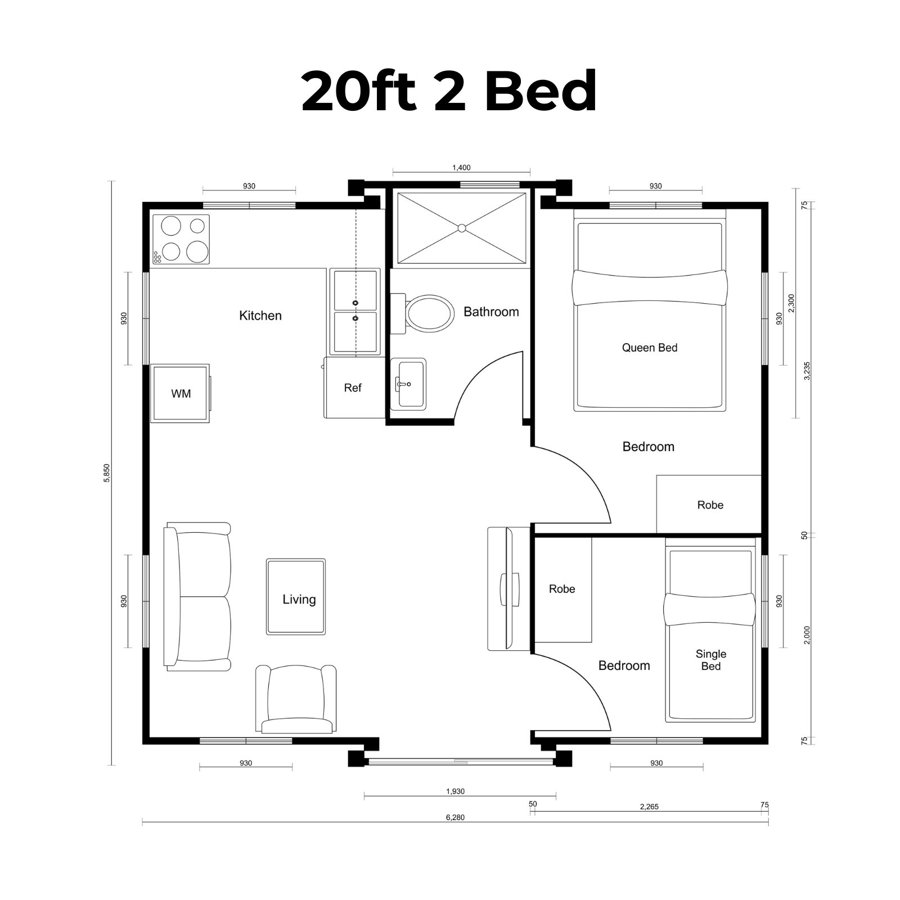

| 2 Bedrooms + Bathroom + Living Room + Kitchen | Small-family housing, staff accommodation, rental cabins |
| Occupancy | 2-3 person |
| Kitchen | Standard kitchen cabinet with sink and faucet reference |
| Bathroom | Toilet, shower, wash basin, mirror cabinet and piping reference |
| Size Item | Parameter |
|---|---|
| Model | 20ft Expandable House Basic Model - Pitch Roof |
| Original Page Loading Size | 5900*2200*2480mm |
| Overall Dimensions | L5900*W6300*H2480mm |

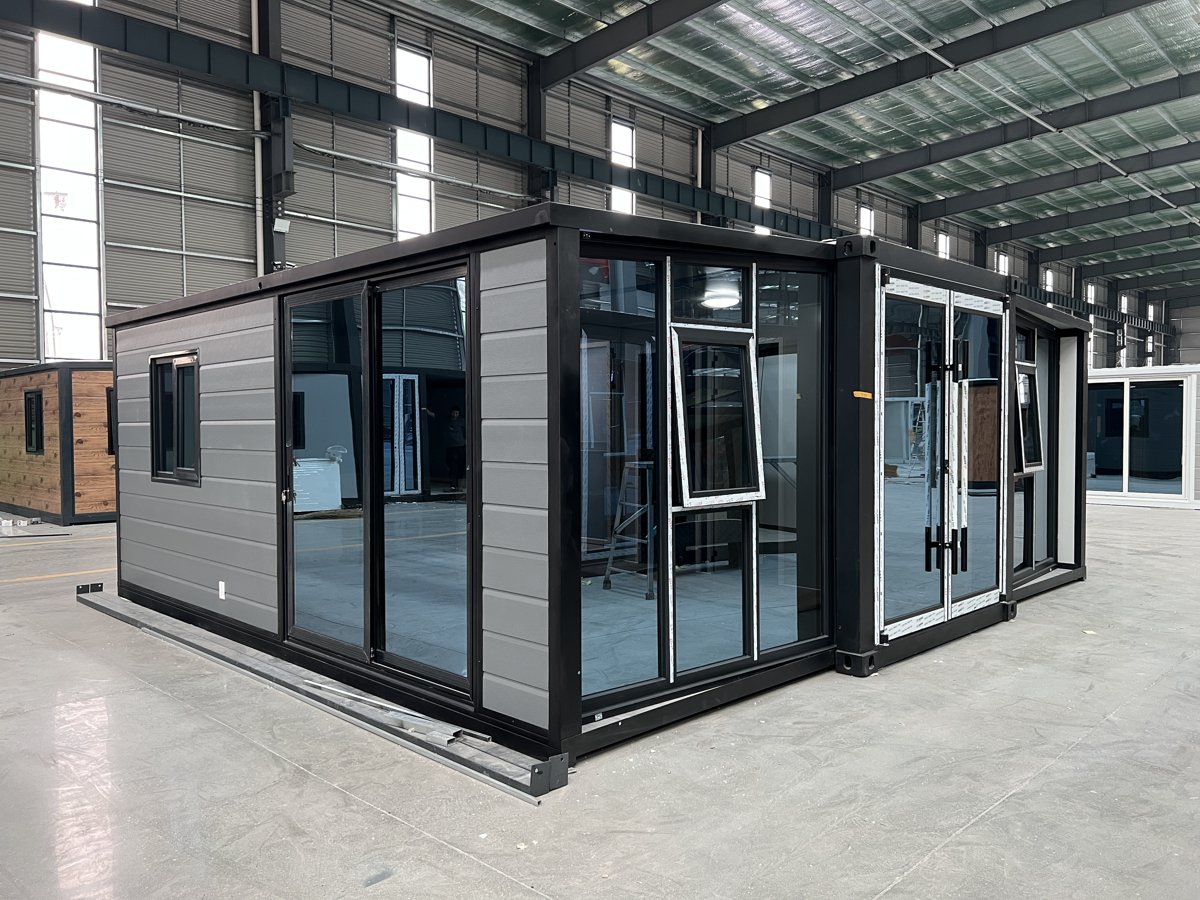

| Expanded Size | L5900*W6300*H2480 |
| Internal Size | L5800*W6000*H2200 |
| Folded Size | L5900*W2200*H2480 |
| Area | 37sqm |
| Current Page Weight | 4000KG |
| Excel Net Weight | 3.5 Tons |
| Maximum Power Load | 12KW |
| Loading Capacity | 2 units per 40HC |
| Reference | Parameter |
|---|---|
| Loading Capacity | 40HC: 2 units |

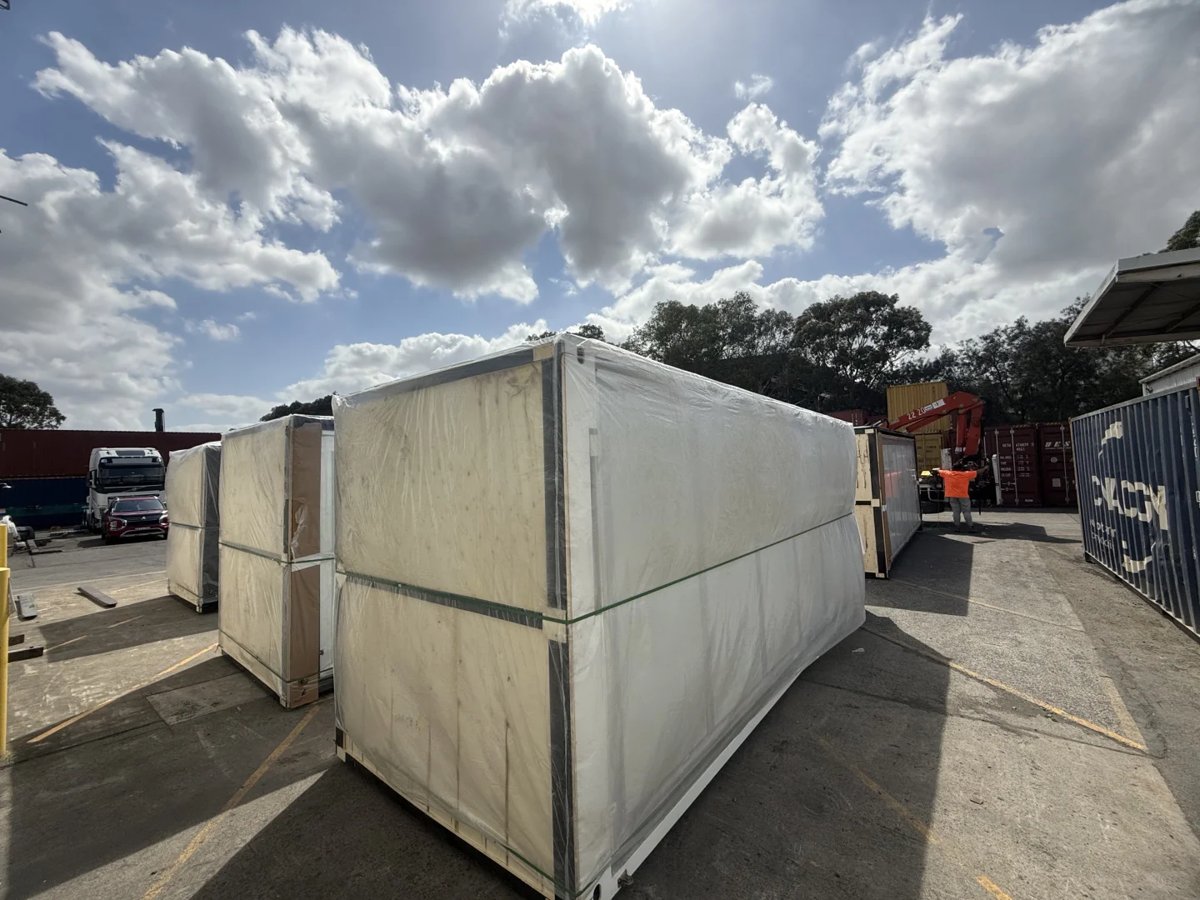

| Delivery Form | Folded expandable unit for container shipping and site lifting |

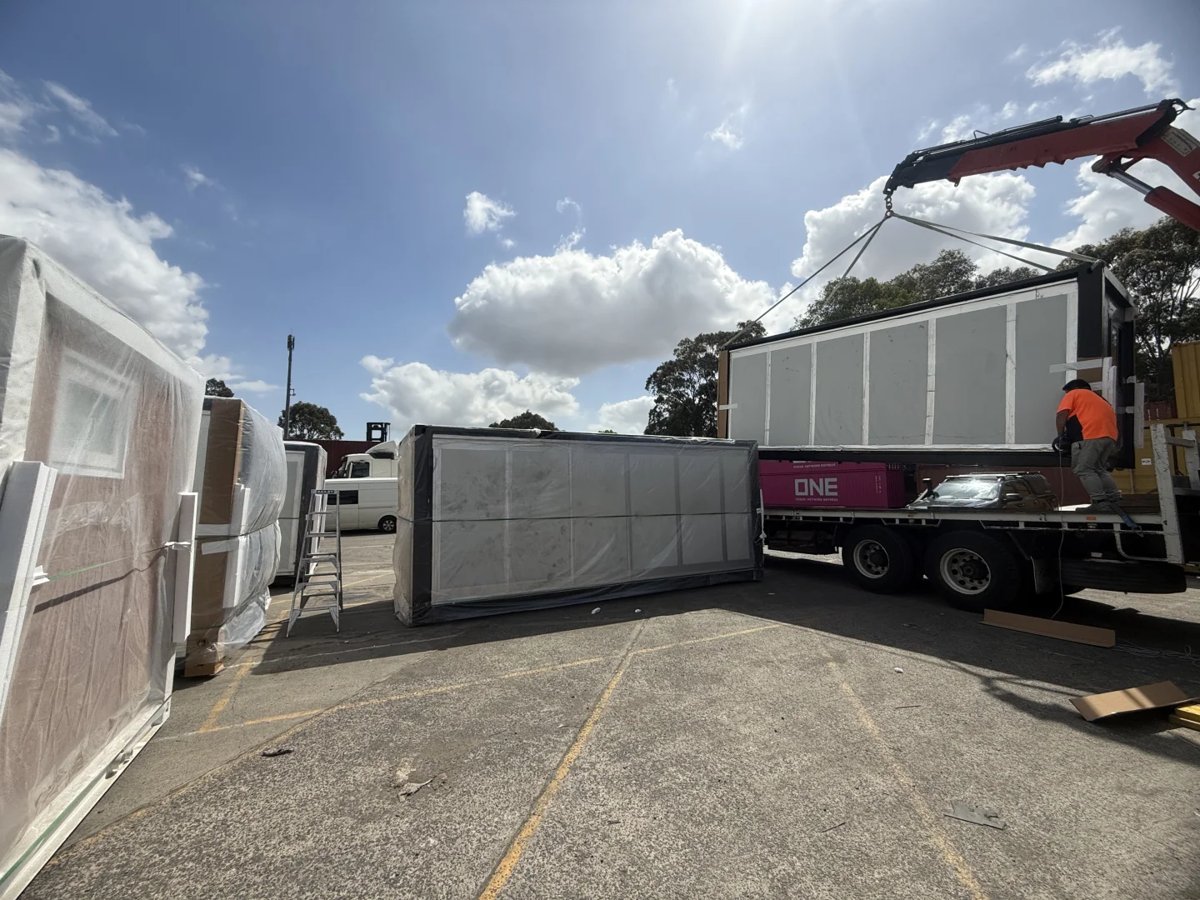

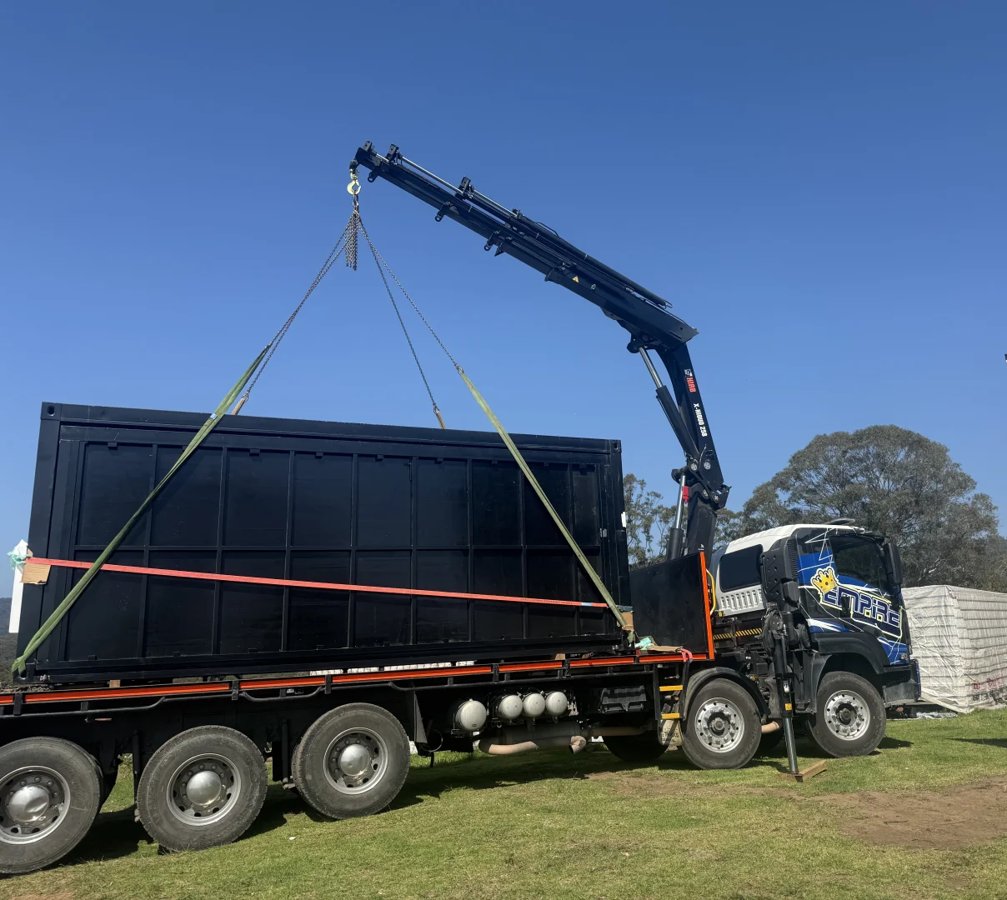

| Site Handling | Truck unloading, crane lifting and positioning |
| Installation Method | Open both wings, fix roof/floor/wall connections, then connect utilities |
| Component | Material / Specification |
|---|---|
| Main Structure | Fully galvanized |
| Roof Main Beam | 80*80*3.0mm galvanized square tube |
| Roof Cross Beam | 2.0mm galvanized folded steel |
| Floor Main Beam | 100*100*3.0mm galvanized square tube |
| Floor Cross Beam | 100*100*3.0mm galvanized square tube |
| Columns & Lifting Points | 3.0mm folded steel |
| Top Side Folding Frame | 40*80*1.5mm P-shaped tube / 40*80*1.5mm square tube / 2.0mm folded steel |
| Bottom Side Folding Frame | 40*60*1.5mm square tube / 80*80*3mm square tube |
| Folding Hinges | 13mm galvanized steel hinges |
| Frame Coating | Electrostatic powder coating |
| Component | Material / Specification |
|---|---|
| External Central Roof | 1.0mm thick steel sheet |
| Interior Roof Panel | 50mm EPS sandwich panel |
| Ceiling Panel | 50mm EPS sandwich panel |
| External Wall Panel | 50mm EPS sandwich panel, core density 12kg/m3, both sides with 0.35mm color-coated steel |
| Interior Partition Panel | 50mm EPS sandwich panel |
| Component | Material / Specification |
|---|---|
| Central Floor | 18mm fiber cement board |
| Side Floor Panels | 18mm fireproof magnesium oxide (MgO) board |
| Surface Flooring | 4mm SPC flooring timber style |

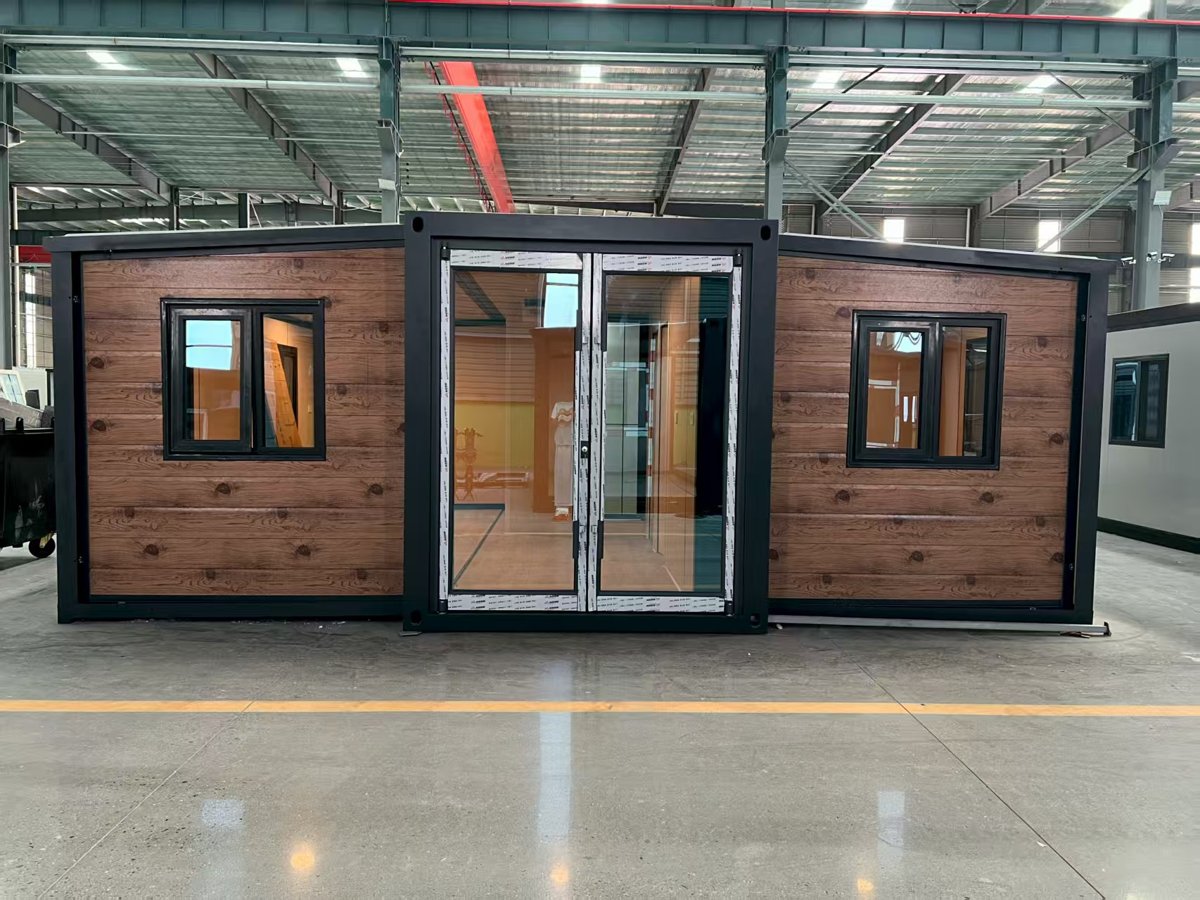

| Main Entrance Door | Broken bridge aluminum door |
| Windows | Aluminum sliding windows, size: 930*930mm |
| Bedroom Door | Steel door |
| Circuit Breakers | 1 leakage protector (RCD), 4 miniature circuit breakers (MCBs) |

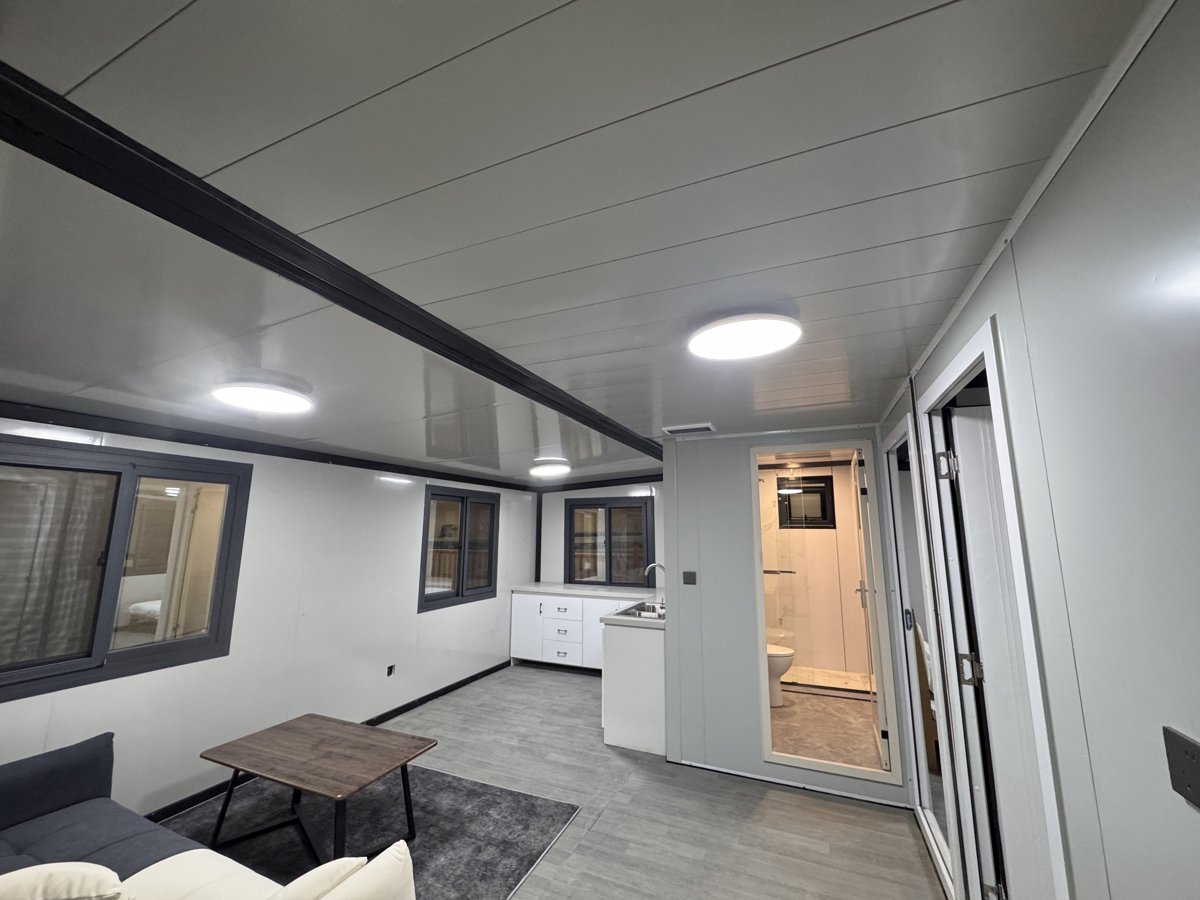

| Lighting | LED round ceiling lights |
| Wiring | Main cable: 6mm2; water heater: 6mm2; kitchen sockets: 4mm2; AC sockets: 4mm2; general sockets: 2.5mm2; lighting: 1.5mm2 |
| Area | Configuration |
|---|---|

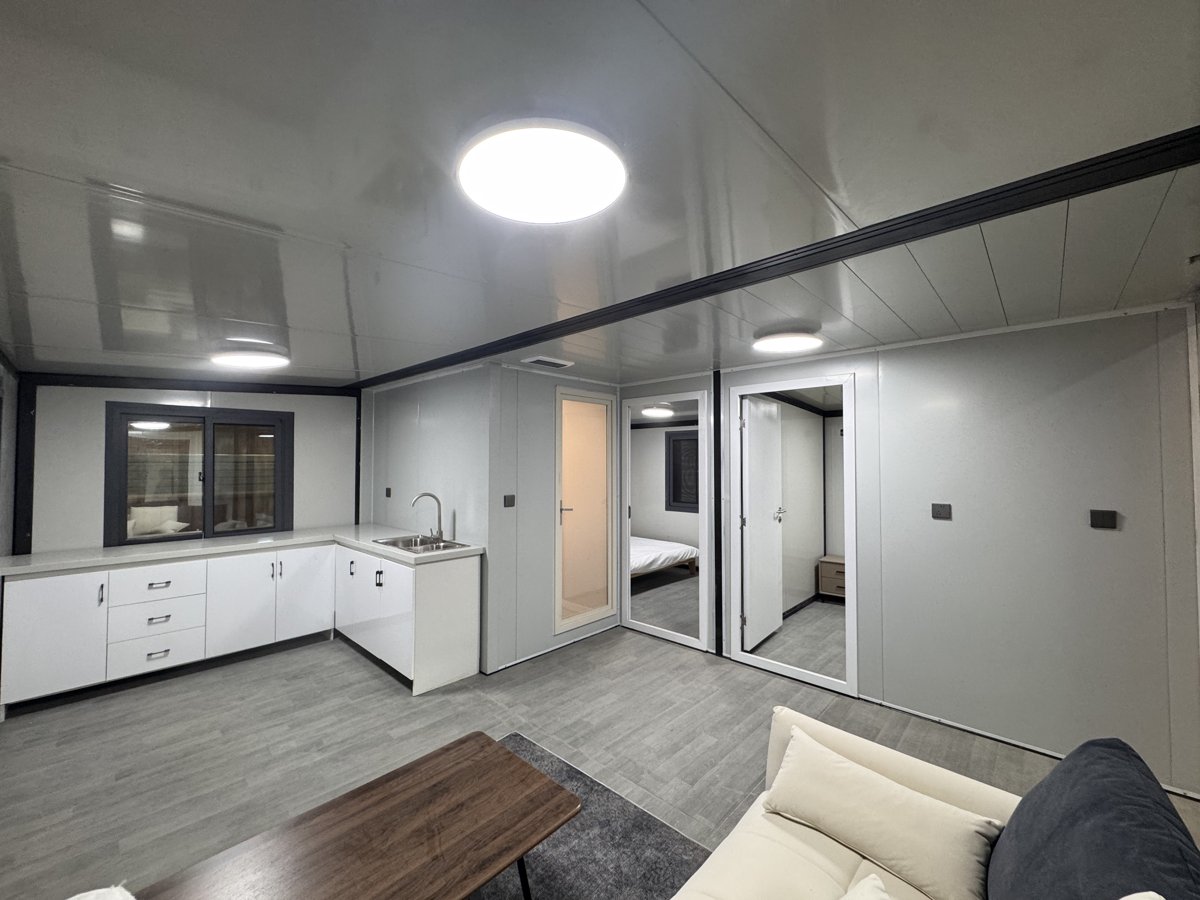

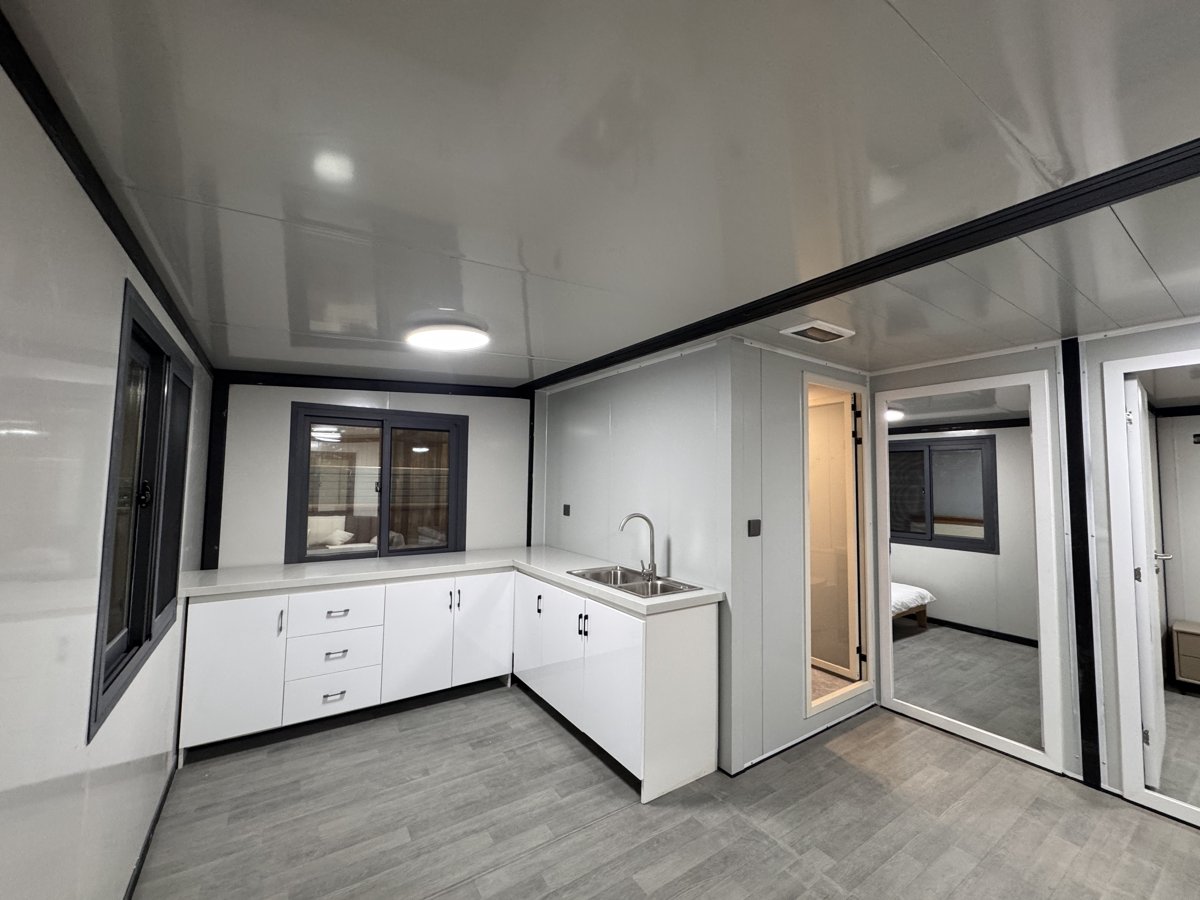

| Kitchen | Standard L-shaped kitchen cabinet with sink and faucet |
| Bathroom | Partition panel, shower set, wash basin, toilet, mirror, cabinet, sliding shower door, floor drain, water supply and drainage piping |

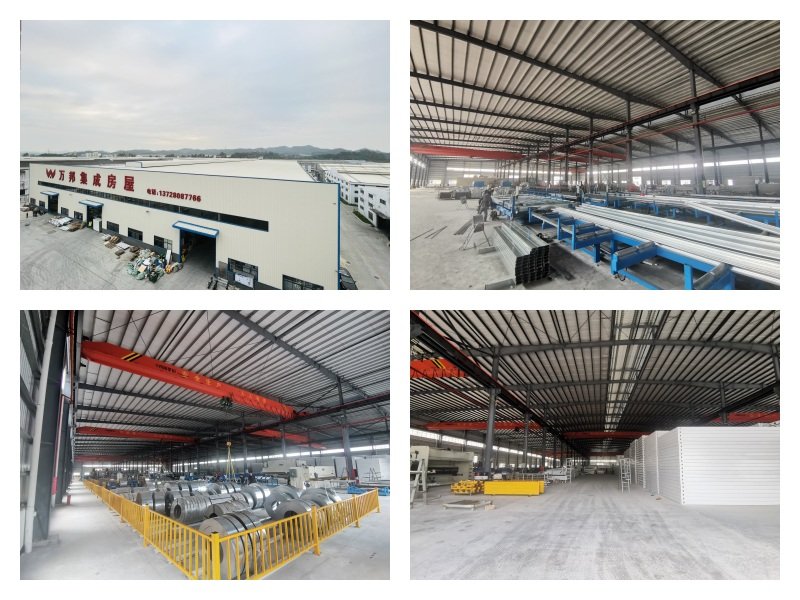

Guangdong Wanbang Modular Building factory was established on December 11, 2018. We have provided customers with high-quality services for 6 years.
Our company mainly provides: construction projects container house, steel structure projects house, etc.
At least 1 unit.
The original page lists 10-15 days. The matched 20ft BasicModel sheet lists 20 days; final lead time should follow order quantity and configuration.
Yes. Wanbang can customize layout, color, doors, windows, electrical standard, kitchen and bathroom configuration according to project requirements.
The original page lists 50% deposite and 50% before shipment.
Hot sale low price expandable container house is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
The 20ft Expandable Container House: A cost-efficient, eco-modular solution. Featuring a lightweight steel frame with high-strength sandwich panels for rapid bolt-on assembly – deployable anywhere within days.
Cheap 20ft Expandable Container Houses is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
Cheap 40ft expandable container camp from China is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
2 bedrooms mobile expandable container house is an eco-friendly and economic modular house, built with light steel structure as the skeleton,full use of the strength of color steel sandwich panels and roof panels. It is assembled by any combination of the standard modules through bolts connection, can be assembled and disassembled conveniently and quickly.
Main structure is made of galvanized steel, wall panels are made of A1 grade non-combustible rockwool panels. Supporting personalized design, and providing a "one-stop" solution
Prefabricated construction modular manufacturing companies produce products such as - movable expandable house, which are mainly made of galvanized steel and A1 grade rock wool board.
Engineered for rapid deployment: This ISO-certified expandable container transforms from 5.9×2.3m to 5.9×6.4m in hours, delivering 37.87m² industrial-grade space with 3.6-ton structural integrity and plug-and-play utilities.
